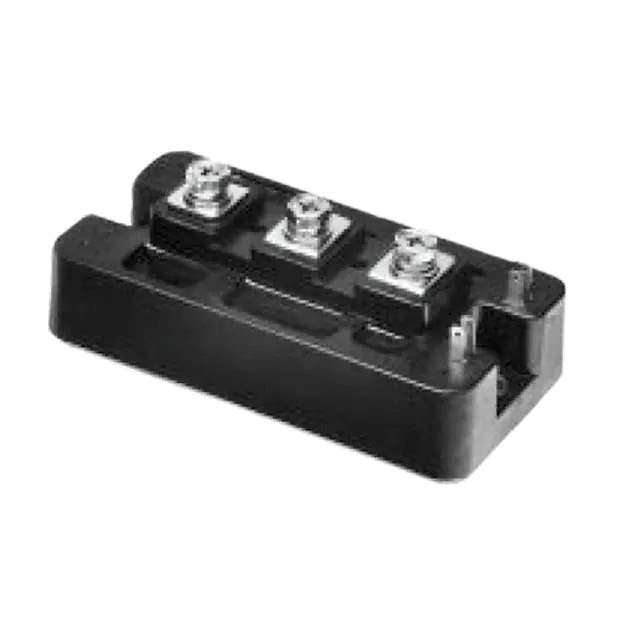

CM200DY-12H Real Image
Same model may have multiple batches, images only for reference.

CM200DY-12H

Part No CM200DY-12H
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 600V 200A 780W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Product Status Obsolete
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 200 A
Power - Max 780 W
Vce(on) (Max) @ Vge, Ic 2.8V @ 15V, 200A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 20 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 2 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 579343-CM200DY-12H
Ultra Librarian 3D Model Ultra Librarian CM200DY-12H CAD Model

Description

The 579343-CM200DY-12H is a high-power IGBT module designed for use in half-bridge configurations.

  • Maximum Power Rating: 780 W
  • Voltage Collector-Emitter Breakdown: 600 V
  • Maximum Collector Current: 200 A
  • Vce(on): 2.8V @ 15V and 200A
  • Input Capacitance: 20 nF @ 10 V
  • Mounting Type: Chassis
  • Operating Temperature Range: -40°C to 150°C
  • Manufacturer: Powerex Inc.
  • Product Status: Obsolete
