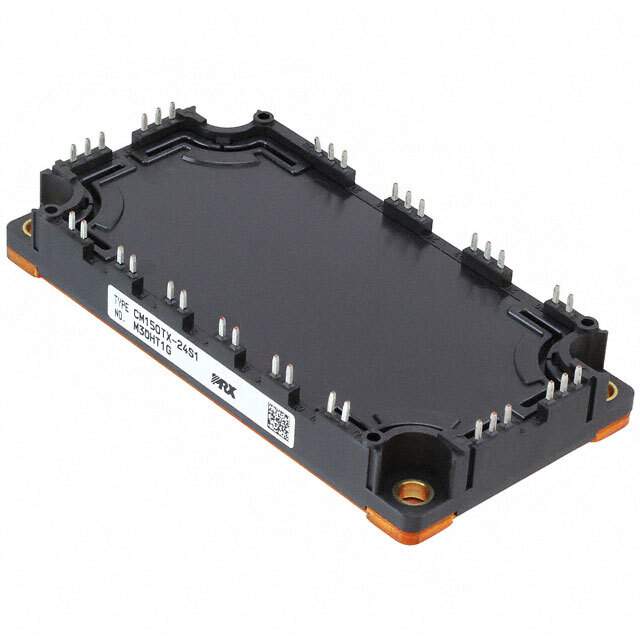

CM150TX-24S1 Real Image
Same model may have multiple batches, images only for reference.

CM150TX-24S1

Part No CM150TX-24S1
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD NX 150A 1200V 6-PAC / Trans IGBT Module N-CH 1200V 150A 935000mW 35-Pin
Datasheet
CM150TX-24S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Powerex Inc.
Configuration Three Level Inverter
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 150A
Power - Max 935W
Vce(on) (Maximum) @ Vge, Ic 2.25V @ 15V, 150A
Current - Collector Cutoff (Maximum) 1mA
Input Capacitance (Cies) @ Vce 15nF @ 10V
Input Standard
NTC Thermistor Yes
Operating Temperature Range -40°C ~ 150°C (TJ)
Package Module
Manufacturer Package Module
Win Source Part Number 771613-CM150TX-24S1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Family Name CM150TX-24S1
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CM150TX-24S1 CAD Model

Description

The CM150TX-24S1 is a three-level inverter configuration module from Powerex Inc.

  • Maximum Power: 935W
  • Operating Temperature: -40°C to 150°C (TJ)
  • Current Collector (Ic): 150A
  • Voltage Collector-Emitter Breakdown (Vce): 1200V
  • Supply and Demand Status: Balanced
  • Package: Single
