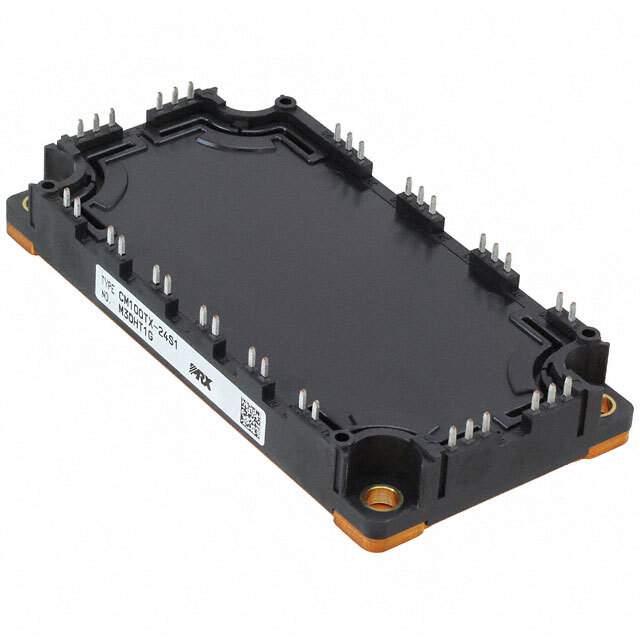

CM100TX-24S1 Real Image
Same model may have multiple batches, images only for reference.

CM100TX-24S1

Part No CM100TX-24S1
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD NX 100A 1200V 6-PAC / Trans IGBT Module N-CH 1200V 100A 625000mW 35-Pin
Datasheet
CM100TX-24S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Powerex Inc.
Configuration Three Level Inverter
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 100A
Power - Max 625W
Vce(on) (Maximum) @ Vge, Ic 2.25V @ 15V, 100A
Current - Collector Cutoff (Maximum) 1mA
Input Capacitance (Cies) @ Vce 10nF @ 10V
Input Standard
NTC Thermistor Yes
Operating Temperature Range -40°C ~ 150°C (TJ)
Package Module
Manufacturer Package Module
Win Source Part Number 771609-CM100TX-24S1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Family Name CM100TX-24S1
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CM100TX-24S1 CAD Model

Description

The CM100TX-24S1 is a three-level inverter module designed by Powerex Inc.

  • Operating Temperature: -40°C to 150°C (TJ)
  • Maximum Power: 625W
  • Package: Bulk
  • Input: Standard
  • Maximum Collector Current (Ic): 100A
  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Vce(on): 2.25V @ 15V, 100A
  • Input Capacitance (Cies) @ Vce: 10nF @ 10V
  • Features: NTC thermistor
  • EAR99: Yes
  • Estimated EOL Date: 2027
