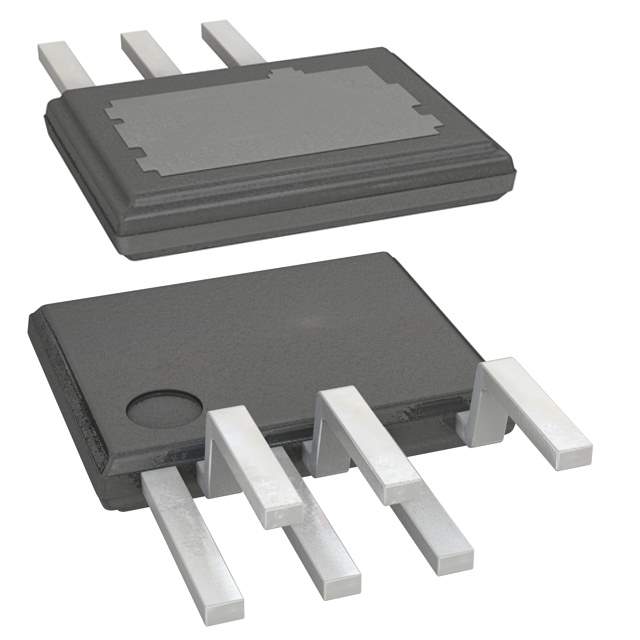

TOP253EN Real Image
Same model may have multiple batches, images only for reference.

TOP253EN

Part No TOP253EN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 7CESIP
Datasheet
TOP253EN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 25W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package eSIP-7C
Mounting Through Hole
Win Source Part Number 053541-TOP253EN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP253EN CAD Model

Description

The TOP253EN is an integrated circuit manufactured by Power Integrations.

  • Topology: Flyback
  • Output Isolation: Isolated
  • Internal Switch(s): Included
  • Voltage Breakdown: 700V
  • Power (watts): 25W
  • Duty Cycle: 78%
  • Frequency of Switching: 66kHz, 132kHz
  • Fault Protection: Current Limiting, Over-Temperature, and Over-Voltage
  • Packaging: Tube/rail
  • Mounting: Through-hole
  • Supply and Demand Status: Limited
  • Temperature Range: -40°C to 150°C (TJ)
  • Case/Package: eSIP-7C
