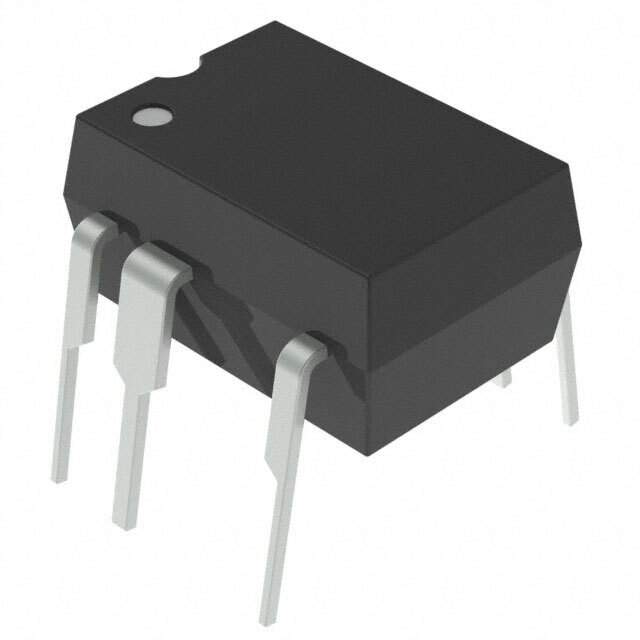

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series LinkSwitch-CV
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 54%
Frequency - Switching 100kHz
Power (Watts) 11W
Fault Protection Current Limiting, Open Loop, Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 8-DIP (0.300", 7.62mm), 7 Leads
Manufacturer Package DIP-8C
Mounting Style Through Hole
Win Source Part Number 1202689-LNK624PG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Family Name LNK624
Introduction Date January 13, 2009
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian LNK624PG CAD Model

Description

The Power Integrations 1202689-LNK624PG is a LinkSwitch-CV series integrated circuit with a power rating of 11W.

  • Topology: flyback
  • Output Isolation: isolated
  • Internal Switch(s): included
  • Voltage Breakdown: 725V
  • Frequency Switching: 100kHz
  • Duty Cycle: 54%
  • Fault Protection: current limiting, open loop, over temperature, and short circuit
  • Package: DIP-8C with 7 leads
  • Popularity: medium
  • ECCN: EAR99
  • EOL Date: 2022
