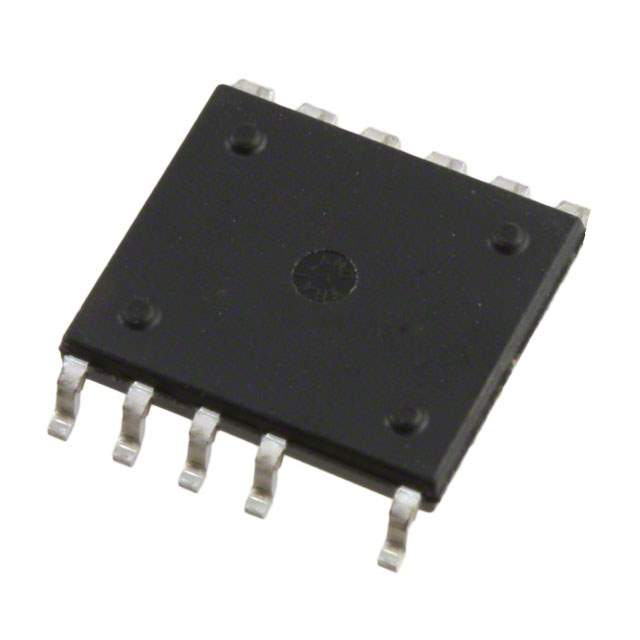

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 67%
Switching Frequency 124kHz ~ 140kHz
Power (W) 6W
Fault Protection Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package 12-ESOP
Mounting Style SMT
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Win Source Part Number 1271570-TNY284KG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TNY284KG CAD Model

Description

The TNY284KG is an electronic component manufactured by Power Integrations.

  • Component Type: This component is an integrated circuit with an isolated output and is mounted with surface-mount technology.
  • Voltage Breakdown: It has a voltage breakdown of 725V, and its topology is flyback with a duty cycle of 67%.
  • Fault Protections: The TNY284KG has various fault protections, including current limiting, open loop, over temperature, over voltage, and short circuit.
  • Manufacturer Homepage: www.powerint.com
