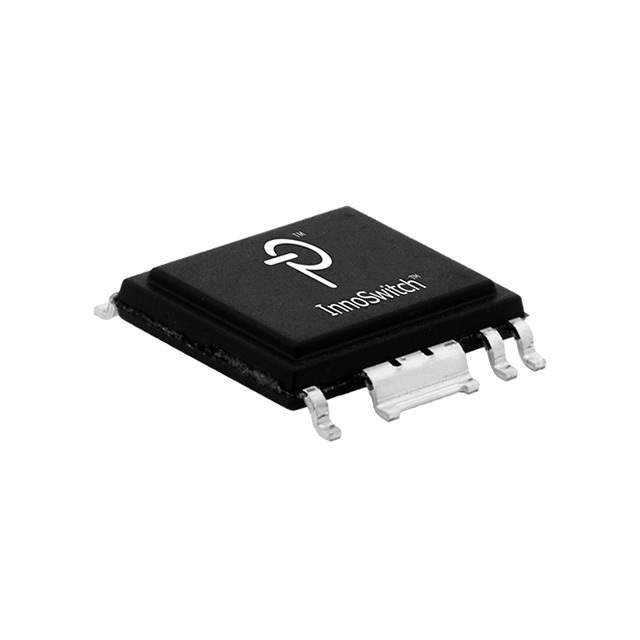

INN2025K Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Power Integrations
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback, Secondary Side SR
Duty Cycle 60%
Frequency - Switching 100kHz
Power (Watts) 20W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package eSOP-R16B
Mounting Style Surface Mount
Manufacturer Pack Quantity 48
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811915-INN2025K
Ultra Librarian 3D Model Ultra Librarian INN2025K CAD Model

Description

The Power Integrations INN2025K is a 20W isolated flyback/secondary side SR power supply.

  • Features: Internal switch
  • Voltage Breakdown: 650V
  • Duty Cycle: 60%
  • Switching Frequency: 100kHz
  • Operating Temperature: -40℃ to 85℃
  • Package: Tube
  • Mounting: Surface Mount
  • Supplier Device Package: eSOP-R16B
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 48
  • MSL Level: 3 (168 hours)
