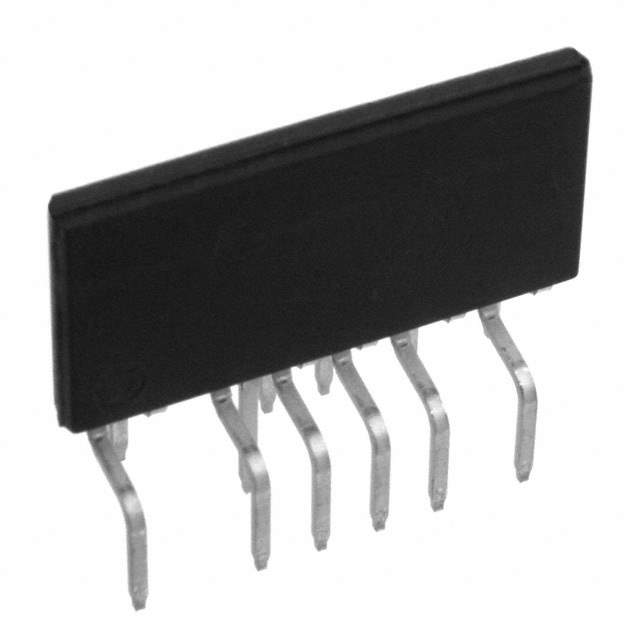

TFS760HG Real Image
Same model may have multiple batches, images only for reference.

TFS760HG

Part No TFS760HG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC PWR SUPPLY CTLR 305W ESIP-16
Datasheet
TFS760HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 530V, 725V
Topology Flyback, Forward
Voltage - Start Up 12.1V
Supply Voltage - Operating 11.1 V to 13.4 V
Duty Cycle 70%
Frequency - Switching 66kHz
Power (Watts) 305W
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 16-eSIPB
Mounting Through Hole
Win Source Part Number 1106862-TFS760HG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TFS760HG CAD Model

Description

The 1106862-TFS760HG is a high-performance integrated circuit manufactured by Power Integrations.

  • Packaging: Tube/Rail
  • Mounting: Through-Hole
  • Power: 305W
  • Output: Isolated and Internal Switches
  • Voltage Breakdown: 530V and 725V
  • Topology: Flyback and Forward
  • Start-Up Voltage: 12.1V
  • Duty Cycle: 70%
  • Switching Frequency: 66kHz
  • Fault Protection: Current Limiting, Over-Temperature, Over-Voltage, and Short Circuit
  • Control Features: EN
  • Supply and Demand Status: Balanced
