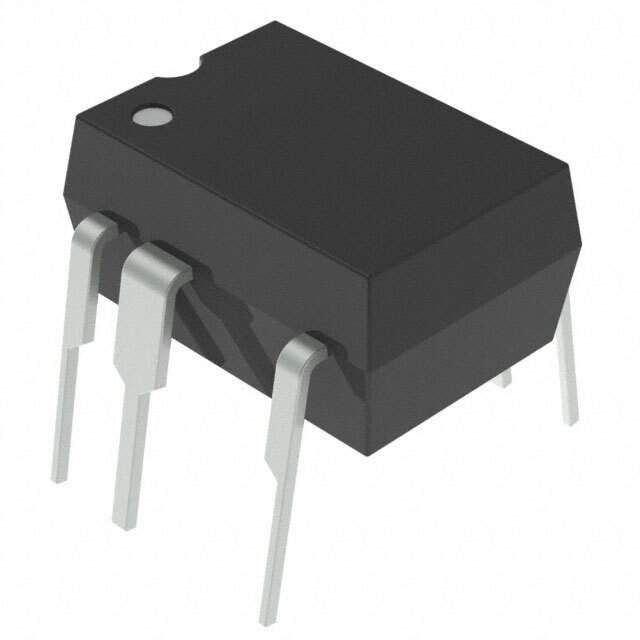

LNK3696P Real Image
Same model may have multiple batches, images only for reference.

LNK3696P

Part No LNK3696P
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH FLYBACK 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 3 Weeks
Features Converter Offline Flyback Topology 66kHz 8-PDIP-C
Manufacturer Power Integrations
Series LinkSwitch™-XT2
Package Tube
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Through Hole
Package 8-DIP (0.300", 7.62mm), 7 Leads
Case / Package 8-PDIP-C
Family Name LNK3696
MSL Level Not Applicable
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 923560-LNK3696P
Ultra Librarian 3D Model Ultra Librarian LNK3696P CAD Model

Description

The Power Integrations LNK3696P is a high-quality integrated circuit designed for use in a variety of applications. It features an offline flyback topology with a frequency of 66kHz.

  • Topology: Offline Flyback
  • Frequency: 66kHz
  • Family Name: LinkSwitch-XT2
  • ECCN: EAR99
  • Popularity: High
  • Estimated Production Lead Time: 3 weeks
  • MSL Level: N/A
  • HTSUS Code: 8542.39.0001
