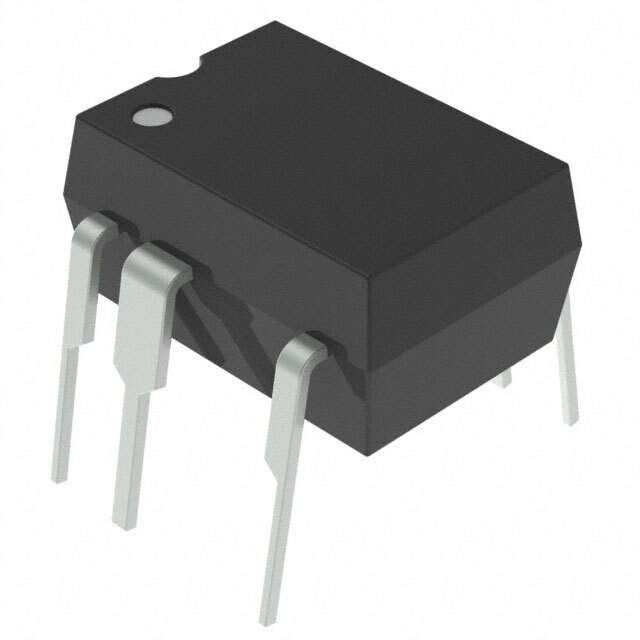

LNK3294P Real Image
Same model may have multiple batches, images only for reference.

LNK3294P

Part No LNK3294P
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH MULT TOP 8DIP / Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-C
Datasheet
LNK3294P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>AC DC Converters, Offline Switches
Manufacturer Power Integrations
Packaging Tube
Output Isolation Non-Isolated
Internal Switch(s) Yes
Voltage - Breakdown 900V
Topology Buck, Buck-Boost, Flyback
Voltage - Start Up 470 mV
Duty Cycle 68%
Frequency - Switching 66kHz
Fault Protection Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features EN, Soft Start
Temperature Range - Operating -40°C ~ 150°C (TJ)
Case / Package 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-PDIP-C
Mounting Through Hole
Base Product Number LNK3294
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 596-1828
Standard Package 50
Win Source Part Number 1320704-LNK3294P
Ultra Librarian 3D Model Ultra Librarian LNK3294P CAD Model

Description

The LNK3294P is an AC DC converter and offline switch integrated circuit manufactured by Power Integrations.

  • Package / Case: 8-DIP (0.300", 7.62mm), 7 leads
  • Mounting Type: Through Hole
  • Output Isolation: Non-Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 900V
  • Topology: Buck, Buck-Boost, Flyback
  • Voltage - Start Up: 470mV
  • Duty Cycle: 68%
  • Frequency - Switching: 66kHz
  • Control Features: EN, Soft Start
  • Fault Protection: Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Category: Integrated Circuits (ICs), Power Management (PMIC)
  • Voltage - Supply (Vcc/Vdd): No
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
