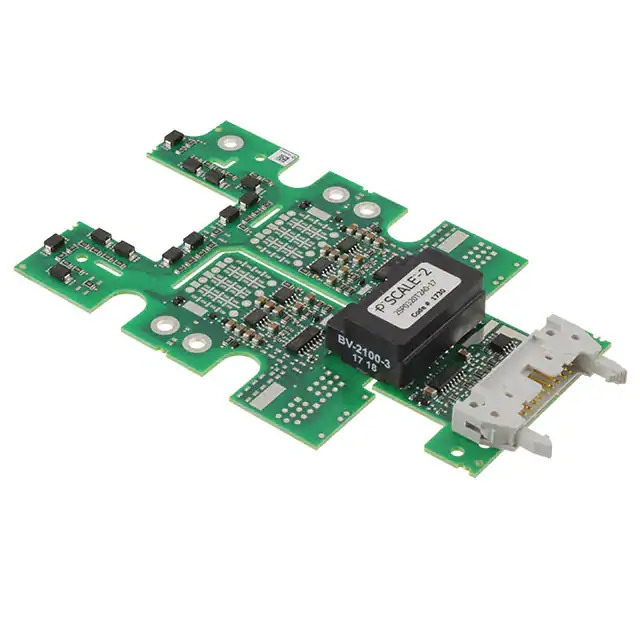

2SP0320V2A0-12 Power Integrations
Same model may have multiple batches, images only for reference.

2SP0320V2A0-12

Part No 2SP0320V2A0-12
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE MODULE / Half-Bridge Gate Driver IC Module
Datasheet
2SP0320V2A0-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Tray
Product Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Voltage - Supply 14.5V ~ 15.5V
Logic Voltage - VIL, VIH -
Current - Peak Output (Source, Sink) 20A, 20A
Input Type -
High Side Voltage - Max (Bootstrap) 1200 V
Rise / Fall Time (Typ) 7ns, 25ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 2SP0320
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1356364-2SP0320V2A0-12
Ultra Librarian 3D Model Ultra Librarian 2SP0320V2A0-12 CAD Model

Description

The 2SP0320V2A0-12 is a gate driver integrated circuit (IC) from the SCALE™-2 series manufactured by Power Integrations.

  • Temperature Range: -40°C to 85°C
  • Voltage Supply Range: 14.5V to 15.5V
  • Features: Fast rise and fall time, suitable for high-speed switching applications
  • Type: Half-bridge driver with independent channels
  • Application: Can drive IGBTs
  • Status: Active
  • Application: Commonly used in power management applications
  • Benefit: Provides reliable and efficient gate driving for various power devices
