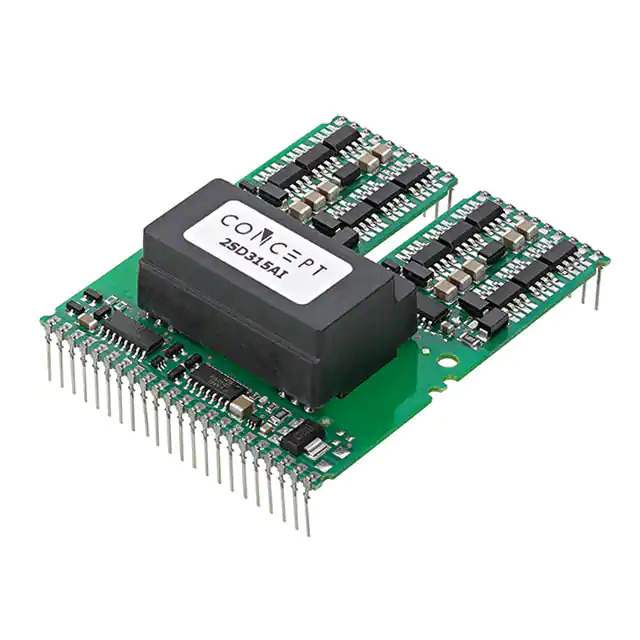

2SD315AI-33 Real Image
Same model may have multiple batches, images only for reference.

2SD315AI-33

Part No 2SD315AI-33
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE MODULE / Half-Bridge Gate Driver IC Module
Datasheet
2SD315AI-33 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-1
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply 15V
Current - Peak Output (Source, Sink) 18A, 18A
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Module
Supplier Device Package Module
Base Product Number 2SD315
Standard Package 12 pcs
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 906409-2SD315AI-33
Ultra Librarian 3D Model Ultra Librarian 2SD315AI-33 CAD Model

Description

The 906409-2SD315AI-33 is a gate driver integrated circuit designed for power management applications.

  • Series: SCALE™-1
  • Packaging: Bulk
  • Standard Package: 12 pieces
  • Configuration: Half-bridge
  • Number of Drivers: Two
  • Compatible Gate Types: IGBT, N-Channel, and P-Channel MOSFET
  • Peak Output Current (Source): 18A
  • Peak Output Current (Sink): 18A
  • Rise and Fall Time: Not specified
  • Voltage Supply Range: 15V
  • Temperature Range: -40°C to 85°C
  • Mounting: Through-hole
  • Package: Module
  • Manufacturer: Power Integrations
  • Status: Active
