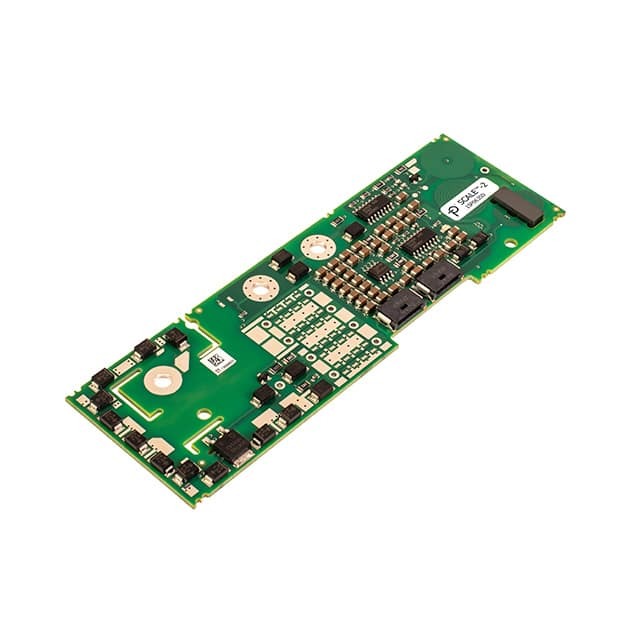

Part No 1SP0635D2S1-33
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HI/LOW SIDE MODULE / High-Side or Low-Side Gate Driver IC Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration High-Side or Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT
Voltage - Supply 14.5V ~ 15.5V
Current - Peak Output (Source, Sink) 35A, 35A
High Side Voltage - Max (Bootstrap) 3300 V
Rise / Fall Time (Typ) 9ns, 30ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 1SP0635
Standard Package 6 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 905785-1SP0635D2S1-33
Ultra Librarian 3D Model Ultra Librarian 1SP0635D2S1-33 CAD Model

Description

The SCALE™-2 series gate driver from Power Integrations is an integrated circuit designed for power management applications.

  • Application: Power Management
  • Voltage Supply Range: 14.5V to 15.5V
  • Peak Output Current (Source): 35A
  • Peak Output Current (Sink): 35A
  • Rise/Fall Time: 9ns/30ns
  • Package: Surface Mount Module
  • ECCN: EAR99
  • HTSUS: 8473.30.1180
