5433697

Part No 5433697
Manufacturer Phoenix Contact
Catalog Terminal Blocks

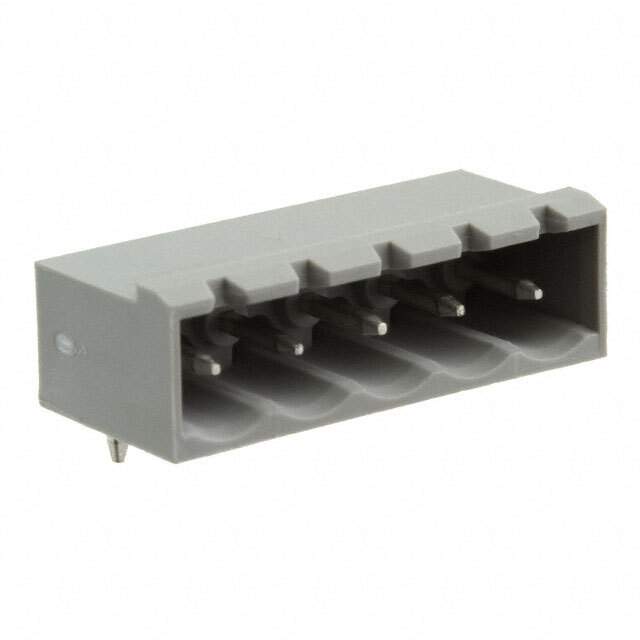

Description TERM BLOCK HDR 5POS 90DEG 5.08MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Phoenix Contact
Packaging Bulk
Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 5.08mm
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current Rating 12A
Voltage Rating 400V
Nominal current IN - UL 15A
Voltage - UL 300V
Color Gray
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.339" (8.61mm)
Win Source Part Number 197021-5433697
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5433697 CAD Model

Description

Product 5433697

The 5433697 is a versatile electronic component designed for a multitude of applications in both commercial and industrial settings. Its robust construction ensures long-lasting performance and reliability.

  • Applications/Projects:
    • Industrial automation systems
    • Consumer electronics
    • Embedded systems
  • Features & Benefits:
    • High efficiency for reduced power consumption
    • Compact size for space-saving integration
    • Durable build to withstand harsh environments
  • Additional Details: This component is suitable for use in both low and high-power applications, providing flexibility for a wide range of projects. It is designed to meet stringent quality standards, ensuring reliable performance over its lifecycle.
