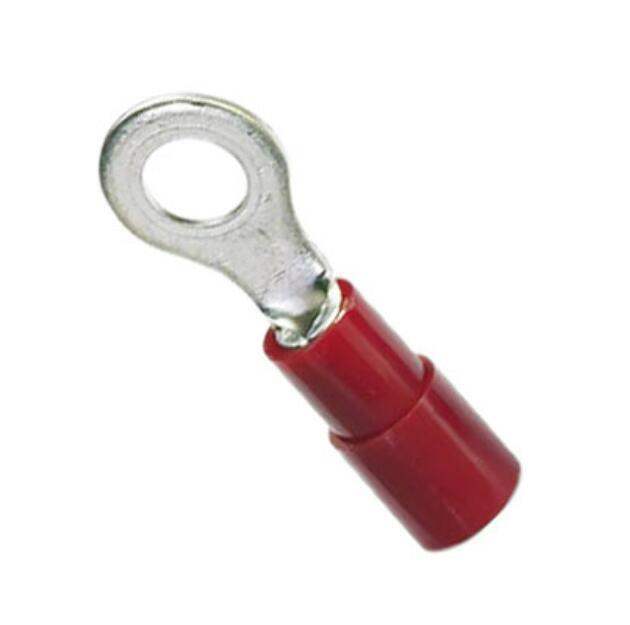

3240018 Phoenix Contact
Same model may have multiple batches, images only for reference.

3240018

Part No 3240018
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 16-20AWG M4 CRIMP
Datasheet
3240018 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminals Ring Connectors
Series CLIPLINE
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M4 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.315" (8.00mm)
Length - Overall 0.854" (21.70mm)
Mounting Type Free Hanging (In-Line)
Win Source Part Number WS1204454-3240018
Ultra Librarian 3D Model Ultra Librarian 3240018 CAD Model

Description

Product Features ：● The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system<br /> ● The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
