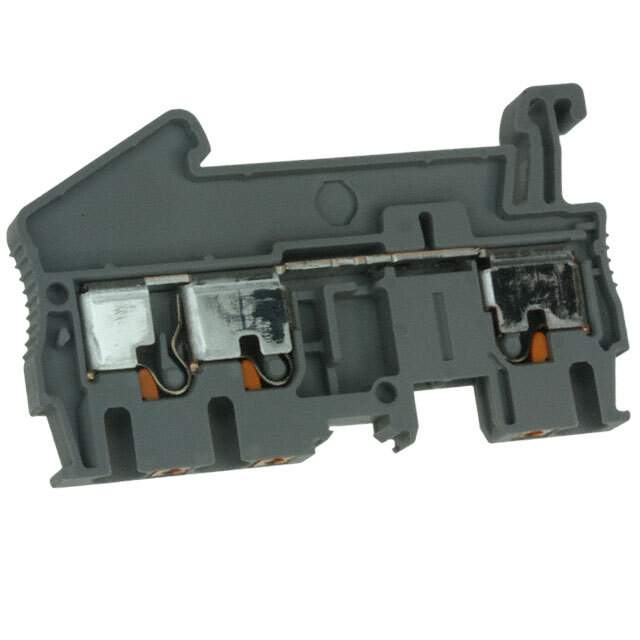

3209549 Real Image
Same model may have multiple batches, images only for reference.

3209549

Part No 3209549
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Feed-Through Terminal Block 24A 800V Push-in Connection 26-12 AWG W 5.22mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CB, CSA, UL, VDE
Color Grey
Current 20 A
Current Rating 24 A
Flammability Rating UL94 V-0
Height 36.5 mm
Housing Material Polyamide
Insulation Material Nylon
Lead Free Lead Free
Length 60.5 mm
Max Current Rating 24 A
Number of Circuits 1
Number of Contacts 3
Number of Levels 1
Number of Positions 3
RoHS Compliant
Stripping Length 10 mm
Terminal Width 5.2 mm
Termination Push-In
Voltage 600 V
Voltage Rating 800 V
Width 5.2 mm
Wire/Cable Gauge 12 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 1186199-3209549
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3209549 CAD Model

Description

This Phoenix Contact terminal block is a push-in type with 3 positions, 1 level, and a voltage rating of 800 V.

  • Type: Push-In
  • Positions: 3
  • Levels: 1
  • Voltage Rating: 800 V
  • Current Rating: 24 A
  • Housing Material: Polyamide
  • Approvals: CB, CSA, UL, and VDE
  • Stripping Length: 10 mm
  • Wire/Cable Gauge: 12 AWG
  • Flammability Rating: UL94 V-0
  • Lead-Free: Yes
  • RoHS Compliant: Yes
