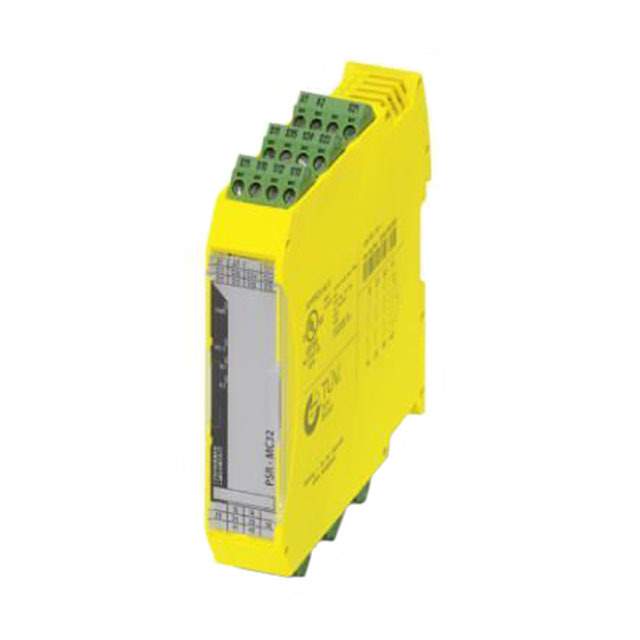

2700524 Real Image
Same model may have multiple batches, images only for reference.

2700524

Part No 2700524
Manufacturer Phoenix Contact
Catalog Power Relays, Over 2 Amps
Description RELAY SAFETY 3PST 6A 24V
Datasheet
2700524 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Safety Relays
Mfr Phoenix Contact
Series PSR
Package Bulk
Mounting Type DIN Rail
Coil Voltage 24VAC/DC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 250VDC - Max
Termination Style Screw Terminal
Operate Time 150 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 103 mA
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314404-2700524
Ultra Librarian 3D Model Ultra Librarian 2700524 CAD Model

Description

The PSR series relay is a safety relay that is widely used in various electronic applications.

  • Contact Form: 3PST-NO (3 Form A)
  • Switching Voltage: 250VAC and 250VDC
  • Coil Voltage: 24VAC/DC
  • Coil Current: 103mA
  • Operate Time: 150ms
  • Release Time: 20ms
  • Manufacturer: Phoenix Contact
  • Mounting Type: DIN Rail Mounted
  • Temperature Range: -40°C to 55°C
