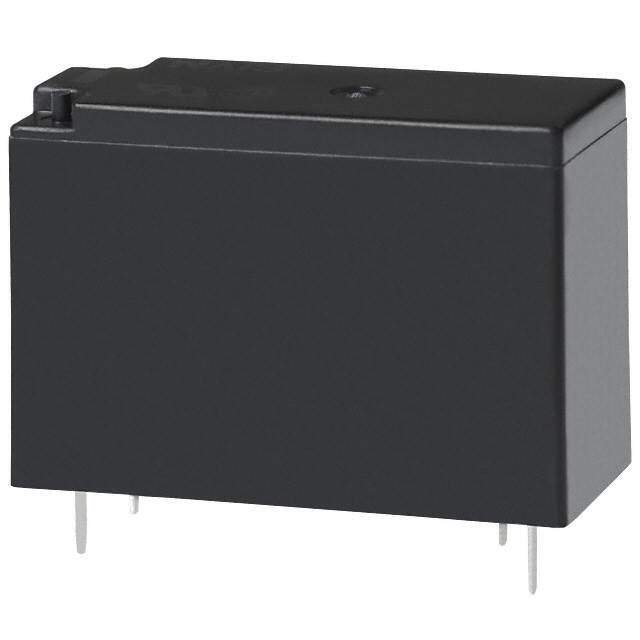

JW2SN-DC5V Real Image JW2SN-DC5V real image10343
Same model may have multiple batches, images only for reference.
JW2SN-DC5V Real Image JW2SN-DC5V real image10343
JW2SN-DC5V Real Image JW2SN-DC5V real image10343
Same model may have multiple batches, images only for reference.

JW2SN-DC5V

Part No JW2SN-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPDT 5A 5V
Datasheet
JW2SN-DC5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 106mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 47 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 1050143-JW2SN-DC5V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JW2SN-DC5V CAD Model

Description

The Panasonic Electric Works 1050143-JW2SN-DC5V relay is a general-purpose, non-latching, DPDT (2 Form C) switch with a coil voltage of 5VDC.

  • Coil Voltage: 5VDC
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 30VDC
  • Fully Sealed: true
  • Coil Resistance: 47 Ohms
  • Coil Current: 106mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Mounting Style: through-hole
  • Packaging: tray
  • Temperature Range: -40°C to 60°C
  • Supply and Demand Status: limited
