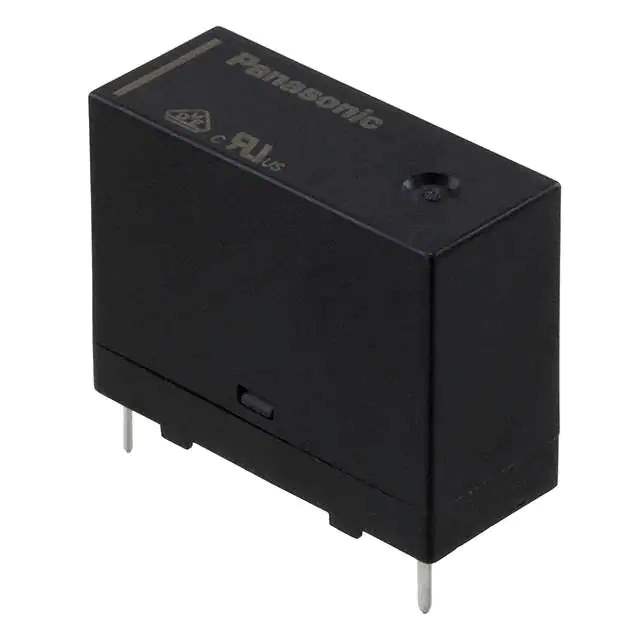

ADW1205HLW Real Image
Same model may have multiple batches, images only for reference.

ADW1205HLW

Part No ADW1205HLW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DW-H
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 80 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 62.5 Ohms
Base Product Number ADW1205
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860631-ADW1205HLW
Ultra Librarian 3D Model Ultra Librarian ADW1205HLW CAD Model

Description

The ADW1205HLW is a latching power relay designed for general-purpose applications.

  • Contact Form: SPST-NO
  • Contact Rating: 16 A
  • Coil Voltage: 5VDC
  • Coil Resistance: 62.5 Ohms
  • Coil Current: 80 mA
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Protection: sealed with flux protection
  • Temperature Range: -40°C to 85°C
  • Mounting Style: through-hole
  • Manufacturer: Panasonic
