Same model may have multiple batches, images only for reference.

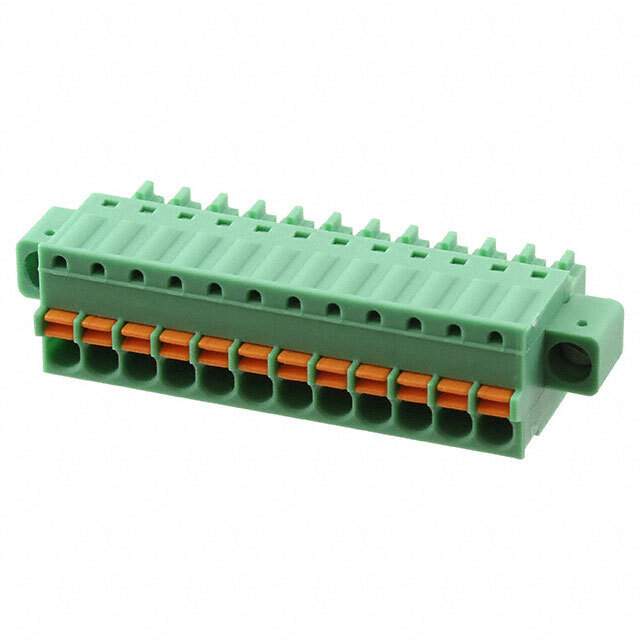

1940198 Real Image
Same model may have multiple batches, images only for reference.

1940198

Part No 1940198
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK PLUG 12POS STR 3.5MM
Datasheet
1940198 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Phoenix Contact
Packaging Bulk
Status Active
Type Plug, Female Sockets
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 3.50mm
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Free Hanging (In-Line)
Current Rating 8A
Voltage Rating 320V
Nominal current IN - UL 8A
Voltage - UL 300V
Wire Gauge or Range - AWG 16-28 AWG
Wire Gauge or Range - mm2 0.14-1.5mm2
Color Green
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Wire Strip Length 9mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.488" (12.40mm)
Win Source Part Number 1029927-1940198
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1940198 CAD Model

Description

The 1940198 electronic component is a high-quality product manufactured by Phoenix Contact.

  • Manufacturer: Phoenix Contact
  • Type: plug, female sockets
  • Positions per Level: 12
  • Pitch: 3.50mm
  • Win Source Part Number: 1029927-1940198
  • Packaging: bulk
  • Status: active
  • Category: Connectors, Interconnects
