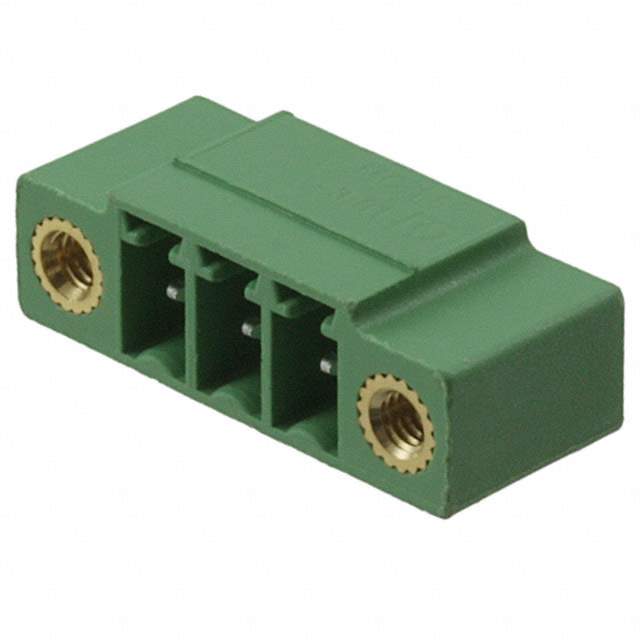

1827871 Real Image
Same model may have multiple batches, images only for reference.

1827871

Part No 1827871
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Datasheet
1827871 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MC
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
Other Names 1827871R,277-5764,1827871,MC1,5/3-GF-3,81
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285212-1827871
Ultra Librarian 3D Model Ultra Librarian 1827871 CAD Model

Description

The Phoenix Contact COMBICON MC series terminal block header is a male pins, shrouded (4 side) type with 3 positions and a pitch of 0.150 inches (3.81mm).

  • Manufacturer: Phoenix Contact
  • Positions: 3
  • Pitch: 0.150 inches (3.81mm)
  • Package: 250
  • Current Rating (IEC): 8A @ 250V IEC
  • Current Rating (UL): 8A @ 300V UL
  • Mounting Type: Through-Hole
  • Header Orientation: 90 Degrees, Right Angle
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
