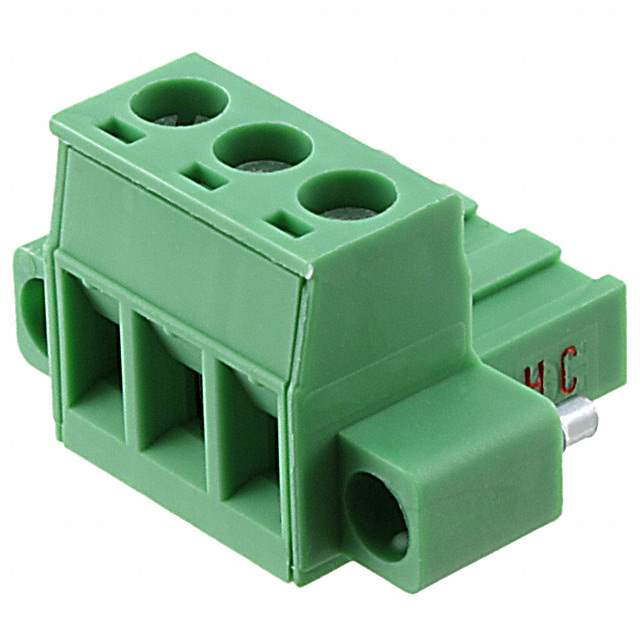

Same model may have multiple batches, images only for reference.

1777992

Name: 1777992
Brand: Phoenix Contact
SKU: 1211497
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1777992
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A Cardboard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Ambient Temperature Range High	100 °C
Approvals	CB, CSA, VDE, cULus
Color	Green
Connector Type	Screw, Socket
Contact Material	Tin
Contact Plating	Tin
Current	12 A
Current Rating	12 A
Depth	18.2 mm
Flammability Rating	UL94 V-0
Gender	Female
Height	18.2 mm
Housing Color	Green
Housing Material	Polyamide
Lead Free	Lead Free
Length	25.25 mm
Material	Polyamide
Max Current Rating	12 A
Max Operating Temperature	100 °C
Max Supply Voltage	250 V
Min Operating Temperature	-40 °C
Mount	Cable, Free Hanging, Plug-In
Number of Circuits	3
Number of Contacts	3
Number of Levels	1
Number of Positions	3
Number of Positions Per Level	3
Number of Rows	1
Orientation	Right Angle
Pitch	5.08 mm
Radiation Hardening	No
RoHS	Compliant
Termination	Screw
Voltage	300 V
Voltage Rating	250 V
Weight	128.999997 g
Width	18.2 mm
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Win Source Part Number	1211497-1777992
Categories	Terminal Blocks
Manufacturer	Phoenix Contact
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1777992 CAD Model

Description

The Phoenix Contact Screw Socket Connector is a female connector with 3 positions and 1 level.

Connector Type: Socket Connector
Positions: 3
Levels: 1
Pitch: 5.08mm
Color: Green
Termination Type: Screw
Contact Material: Tin
Voltage Rating: 250V
Current Rating: 12A
Orientation: Right-Angle
Housing Material: Polyamide
Approvals: CB, CSA, VDE, and cULus
Supply and Demand: Limited
Lead-Free: Yes
Flammability Rating: UL94 V-0
Maximum Current: 12A
Wire Gauge: 12-30 AWG
