Same model may have multiple batches, images only for reference.

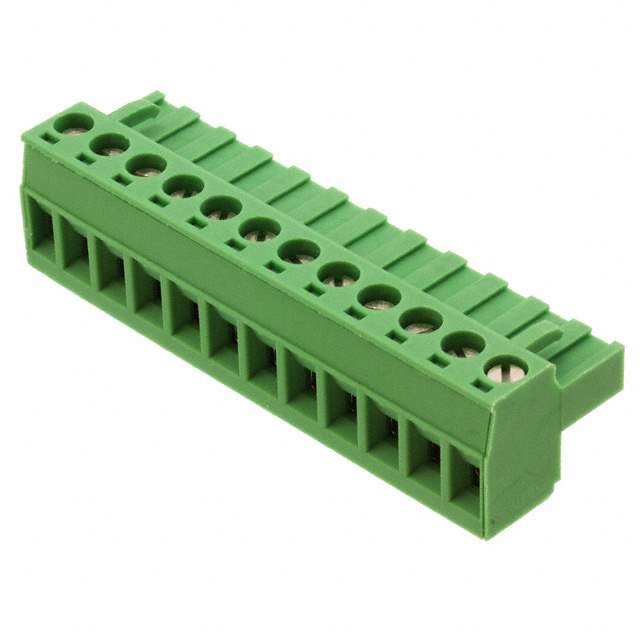

1781085 Real Image
Same model may have multiple batches, images only for reference.

1781085

Part No 1781085
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Conn Terminal Block F 12 POS 5.08mm Screw Cable Mount 12A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Connector Type Screw, Socket
Contact Material Tin
Contact Plating Tin
Current 12 A
Current Rating 12 A
Depth 18.2 mm
Flammability Rating UL94 V-0
Height 18.2 mm
Housing Color Green
Housing Material Polyamide
Lead Free Lead Free
Length 60.96 mm
Max Current Rating 12 A
Max Supply Voltage 300 V
Mount Cable, Free Hanging
Number of Circuits 12
Number of Contacts 12
Number of Levels 1
Number of Positions 12
Number of Positions Per Level 12
Number of Rows 1
Pitch 5.08 mm
Radiation Hardening No
RoHS Compliant
Termination Screw
Voltage 300 V
Voltage Rating 250 V
Weight 129.999998 g
Width 60.96 mm
Wire/Cable Gauge 12 AWG
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1217302-1781085
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1781085 CAD Model

Description

The Phoenix Contact 1217302-1781085 is a 12-position terminal block that is widely used in electronic circuits.

  • Positions: 12
  • Supply and Demand Status: Limited
