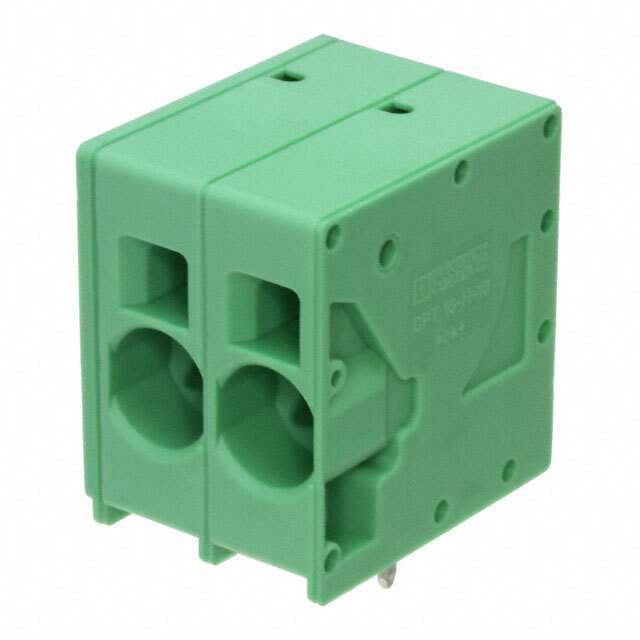

1735781 Phoenix Contact
Same model may have multiple batches, images only for reference.

1735781

Part No 1735781
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 2P SIDE ENTRY 10MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209355-1735781
Manufacturer Phoenix Contact
Category Connectors, Interconnects- Terminal Blocks- Wire to Board
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.394" (10.00mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Wire Termination Screwless - Spring Cage, Tension Clamp
Ultra Librarian 3D Model Ultra Librarian 1735781 CAD Model

Description

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm² , number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SPT 16/..-H, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 4 mm, number of solder pins per potential: 3, type of packaging: packed in cardboard
