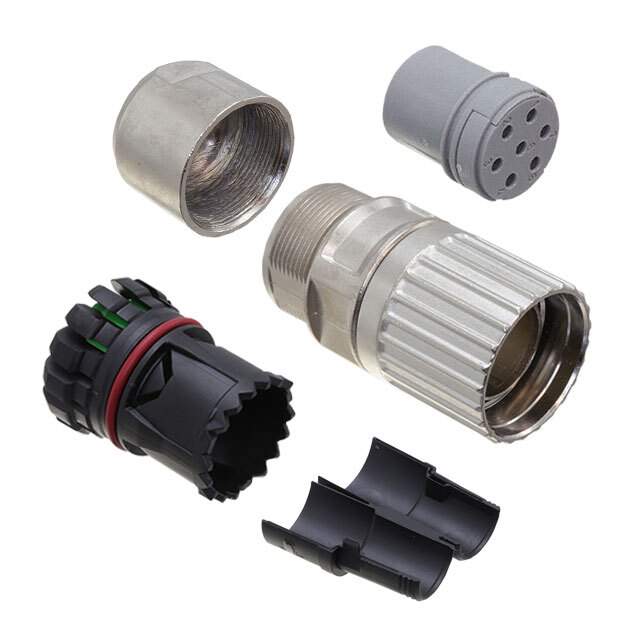

1629228 Real Image
Same model may have multiple batches, images only for reference.

1629228

Part No 1629228
Manufacturer Phoenix Contact
Catalog Circular Connectors - Housings
Description CONN PLG HSG FMALE 7POS INLINE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr Phoenix Contact
Series PRO
Package Bag
Product Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 7
Shell Size - Insert M23-7
Contact Type Crimp
Contact Size 2.0mm
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Twist
Orientation N (Normal)
Shell Material Gadolinium-Zinc
Housing Color Silver
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Features Backshell, Coupling Nut
Shielding Shielded
Note Contacts Not Included
Insert Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1200665-1629228
Ultra Librarian 3D Model Ultra Librarian 1629228 CAD Model

Description

The PRO series from Phoenix Contact offers reliable circular connector housings for various applications.

  • Product Type: plug housing for female sockets
  • Positions: 7
  • Features: backshell and coupling nut
  • Connector Type: crimp
  • Temperature Range: -40°C to 125°C
  • Housing Material: gadolinium-zinc
  • Shielded: Yes
  • Suitable for: a wide range of applications
  • Standard Package: 1 pc
