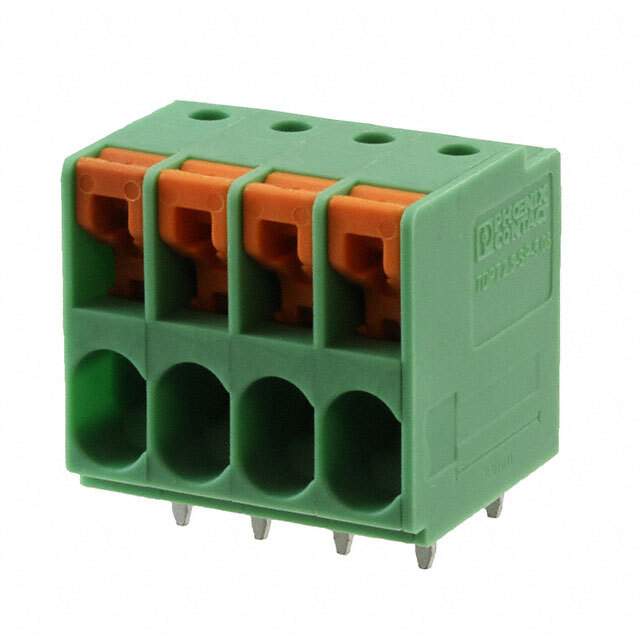

1017505 Real Image
Same model may have multiple batches, images only for reference.

1017505

Part No 1017505
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Datasheet
1017505 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr Phoenix Contact
Series COMBICON TDPT
Package Bulk
Number of Levels 1
Positions Per Level 4
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 32 A
Voltage 400 V
Wire Gauge 12-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Lever Actuated
Color Green
Temperature Range - Operating -40°C
Contact Material - Plating Tin
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1315281-1017505
Ultra Librarian 3D Model Ultra Librarian 1017505 CAD Model

Description

The 1017505 is an electronic component manufactured by Phoenix Contact.

  • Category: Connectors, Interconnects > Terminal Blocks - Wire to Board
  • Features: Lever Actuated
  • Wire Gauge: 12-24 AWG
  • Voltage: 400 V
  • Current: 32 A
