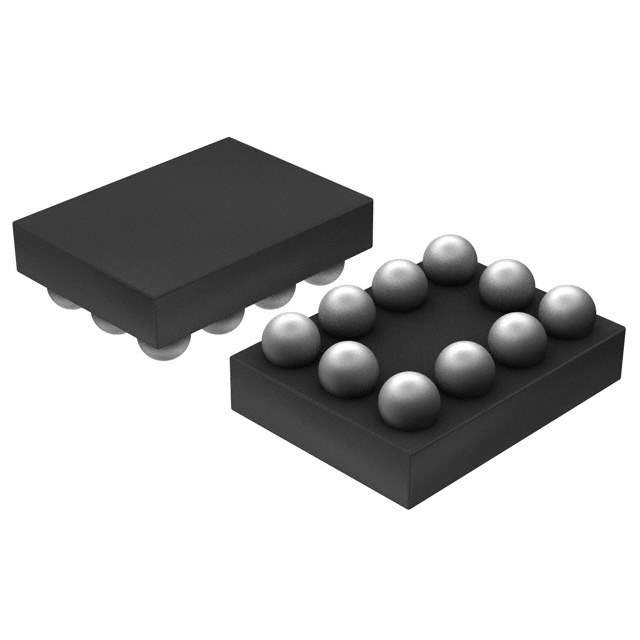

The PI5A4684GAE is a single-pole, single-throw (SPST) analog switch manufactured by Pericom (now Diodes Incorporated). It's designed for a variety of signal switching applications, offering low on-resistance and fast switching speeds.

Applications:

• Cell Phones and Smartphones: Used for audio signal routing, headset detection, and accessory switching.
• Portable Media Players: Employed for audio and video signal switching between different sources and outputs.
• Laptop Computers: Integrated for switching between internal and external audio sources, and for USB port protection.
• Tablet Computers: Utilized for audio signal routing and accessory detection.
• Automotive Infotainment Systems: Used for switching between different audio sources, such as radio, CD player, and auxiliary input.

Features:

• Single-Pole, Single-Throw (SPST): Provides a simple on/off switch for analog signals.
• Low On-Resistance (RDS(on)): Features a low RDS(on) of typically less than 1 Ohm, minimizing signal attenuation.
• Fast Switching Speed: Offers fast switching speeds, typically in the nanosecond range.
• Wide Bandwidth: Supports a wide bandwidth, allowing for the switching of high-frequency signals.
• Low Distortion: Designed for low total harmonic distortion (THD), ensuring high signal fidelity.
• Small Package: Available in a small package, such as SOT-23 or MSOP, for space-constrained applications.
• Wide Operating Voltage Range: Operates over a wide voltage range, typically from 1.8V to 5.5V.

Benefits:

• Minimal Signal Loss: Low on-resistance minimizes signal attenuation, ensuring high signal integrity.
• Fast Switching: Fast switching speeds enable rapid signal routing and prevent signal degradation.
• High Signal Fidelity: Low distortion ensures that the signal is switched without introducing unwanted harmonics or noise.
• Versatile Application: Wide bandwidth and operating voltage range make it suitable for a variety of applications.
• Compact Design: Small package allows for easy integration into portable devices.

Additional Details:

The PI5A4684GAE is designed to operate over a wide temperature range. It is typically controlled by a digital logic signal. The switch is bidirectional, meaning it can pass signals in either direction. It is commonly used in applications where a simple, low-loss, and fast-switching analog switch is required. The device is RoHS compliant, meeting environmental standards.
