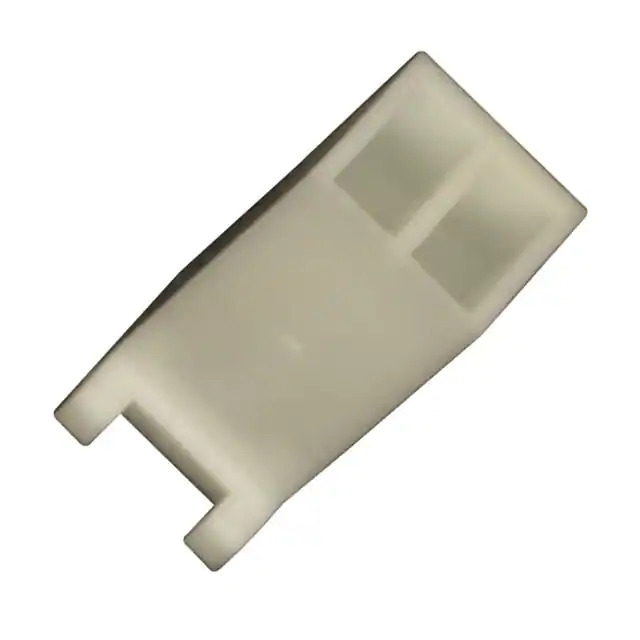

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series CST-100 II
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color White
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 1375820
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365503-1375820-2
Ultra Librarian 3D Model Ultra Librarian 1375820-2 CAD Model

Description

The TE Connectivity AMP Connectors CST-100 II series is a white receptacle connector designed for free hanging (in-line) mounting. It's from TE Connectivity AMP Connectors.

  • Series: CST-100 II
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -55°C to 105°C
  • Packaging: Bulk
  • HTSUS Code: 8538.90.6000
  • ECCN: EAR99
  • Product Status: Active
  • Base Product Number: 1375820
  • Positions: 2
  • Rows: 1
  • Fastening Type: Locking Ramp
