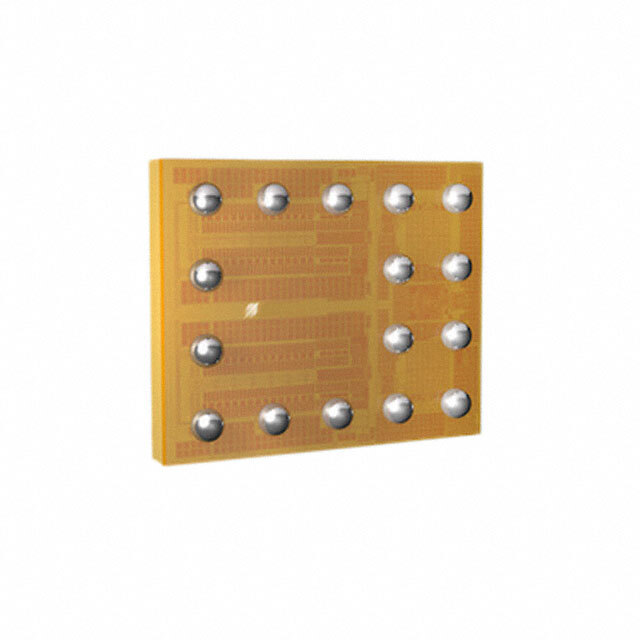

PE29101A-X

Name: PE29101A-X
Brand: Peregrine Semiconductor
SKU: 1357230
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PE29101A-X
Manufacturer	Peregrine Semiconductor
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE DIE / Half-Bridge Gate Driver IC CMOS/TTL Die
Datasheet	PE29101A-X Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	pSemi
Series	-
Package	Tape & Reel
Product Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4V ~ 6.5V
Logic Voltage - VIL, VIH	-
Current - Peak Output (Source, Sink)	2A, 4A
Input Type	CMOS/TTL
Rise / Fall Time (Typ)	1ns, 1ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
Base Product Number	PE29101
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1357230-PE29101A-X
Ultra Librarian 3D Model	Ultra Librarian PE29101A-X CAD Model

Description

The PE29101A-X is a gate driver IC designed for power management applications.

Supply Voltage: 4V to 6.5V
Rise and Fall Time: 1ns
Input Type: CMOS/TTL Compatible
Configuration: Half-Bridge Driven
Channel: N-Channel MOSFET
Drivers: 2
Synchronous Channels: Yes
Package: Die
RoHS Compliant: Yes
Status: Obsolete
