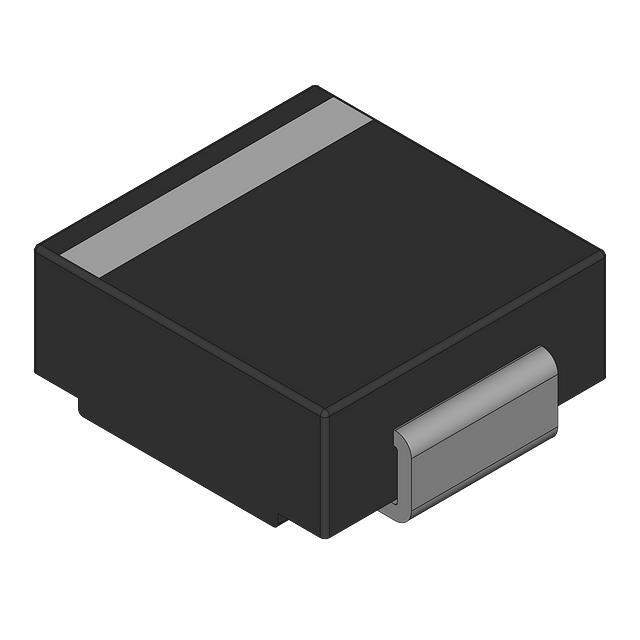

SK54L_R1_00001

Name: SK54L_R1_00001
Brand: Panjit
SKU: 979795
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SK54L_R1_00001
Manufacturer	Panjit
Catalog	Diodes, Rectifiers - Single
Description	SMC, SKY / Diode Schottky 40 V 5A Surface Mount SMC (DO-214AB)
Datasheet	SK54L_R1_00001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	440 mV @ 5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 µA @ 40 V
Mounting	SMD (SMT)
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC (DO-214AB)
Operating Temperature - Junction	-55°C ~ 150°C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	3757-SK54L_R1_00001DKR,3757-SK54L_R1_00001TR,3757-SK54L_R1_00001CT
Standard Package	800
Win Source Part Number	979795-SK54L_R1_00001
Ultra Librarian 3D Model	Ultra Librarian SK54L_R1_00001 CAD Model

Alternative Products

Description

The SK54L_R1_00001 is a fast recovery Schottky diode with a maximum reverse voltage rating of 40V and an average rectified current rating of 5A.

Maximum Reverse Voltage Rating: 40V
Average Rectified Current Rating: 5A
Operating Temperature Range: -55°C to 150°C
Package: DO-214AB, SMC
Mounting Technology: Surface Mount
Forward Voltage Rating: 440 mV @ 5A
Reverse Leakage Current: 500 µA @ 40V
Manufacturer: Panjit International Inc.
