Same model may have multiple batches, images only for reference.

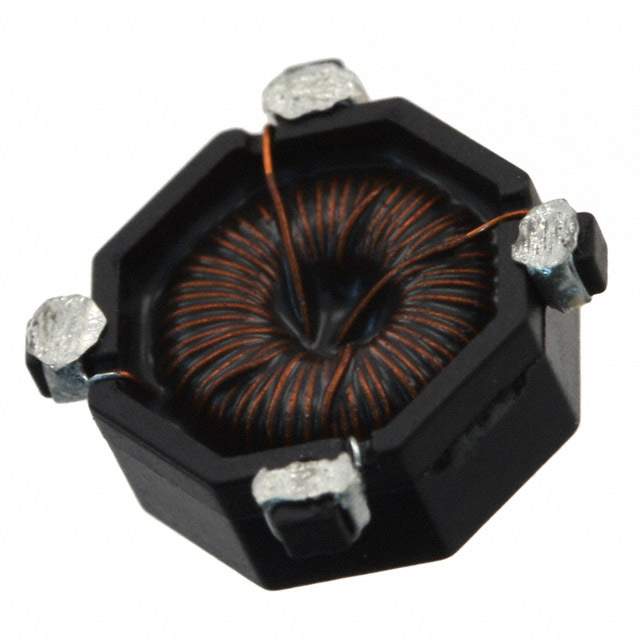

CTX20-1-R Real Image
Same model may have multiple batches, images only for reference.

CTX20-1-R

Part No CTX20-1-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 19.6UH SMD
Datasheet
CTX20-1-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 78.4μH
Inductance - Connected In Parallel 19.6μH
Tolerance ±20%
Current Rating - Parallel 1A
Current Rating - Series 500mA
DC Resistance (DCR) - Parallel 146 mOhm Max
DC Resistance (DCR) - Series 583 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.165" (4.19mm)
Win Source Part Number 050528-CTX20-1-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CTX20-1-R CAD Model

Description

CTX20-1-R Electronic Component

CTX20-1-R is ideal for applications demanding compact size coupled with efficient performance and reliability.

  • Applications: Portable devices, Wearable technology, Smart appliances, Internet of Things (IoT) gadgets
  • Features & Benefits: Ultra-compact size for space-saving designs, Low power draw extending battery life, High compatibility with modern circuits
  • Additional Details: Offers customizable specifications for tailored application use, Meets industry standards for safety and performance
