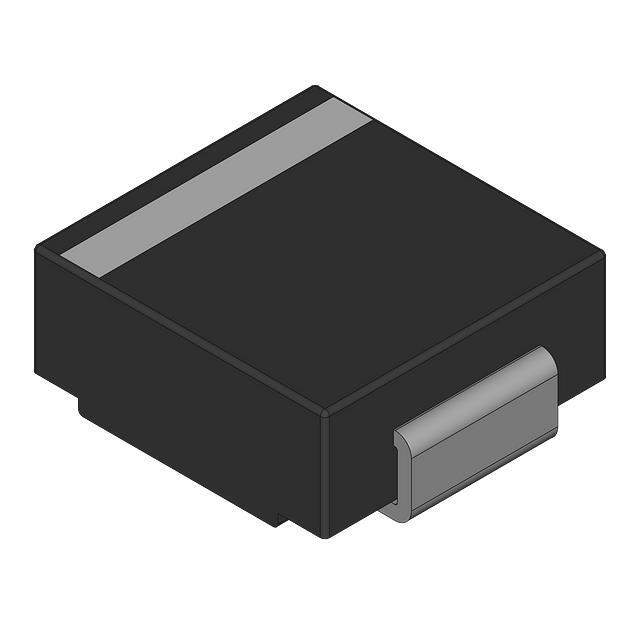

The 1.5SMCJ200CA is a Surface Mount Transient Voltage Suppressor (TVS) diode manufactured by Panjit. It's designed to protect sensitive electronic components from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). This bidirectional TVS diode is part of the SMCJ series and offers robust protection in a compact SMC (DO-214AB) package.

Applications:

• Industrial control systems: Protecting sensitive controllers and I/O modules from voltage surges.
• Telecom equipment: Safeguarding communication lines and equipment from lightning strikes.
• Automotive electronics: Providing transient voltage protection for vehicle electronic systems.
• Power supplies: Protecting power supply circuits from overvoltage conditions.
• Consumer electronics: Safeguarding sensitive components in TVs, set-top boxes, and other devices.

Features:

• Bidirectional TVS Diode: Provides symmetrical voltage protection.
• Surface Mount Package (SMC/DO-214AB): Allows for automated assembly and compact board design.
• Peak Pulse Power Dissipation: High peak pulse power capability for effective transient suppression.
• Glass Passivated Junction: Offers high reliability and stability.
• Low Incremental Surge Resistance: Minimizes voltage overshoot during transient events.
• Excellent Clamping Capability: Limits the voltage across the protected circuit to a safe level.
• Fast Response Time: Responds quickly to transient events.
• RoHS Compliant: Meets environmental regulations.

Benefits:

• Enhanced System Reliability: Protects sensitive components from damage due to voltage transients.
• Reduced Downtime: Prevents equipment failures caused by voltage surges.
• Simplified Design: Easy to integrate into existing circuits.
• Cost-Effective Protection: Provides a cost-effective solution for transient voltage protection.
• Increased Product Lifespan: Extends the life of electronic equipment by preventing damage from transient events.

Additional Details:

The 1.5SMCJ200CA has a standoff voltage (Vrwm) of 200V, meaning it will not conduct under normal operating conditions below this voltage. The breakdown voltage (Vbr) is typically around 222V, and the clamping voltage (Vc) is approximately 324V at a peak pulse current (Ipp) of 4.6A. The peak pulse power is 1500W. The operating temperature range is typically -55°C to +150°C. The clamping factor (Vc/Vbr) is an important parameter that indicates the effectiveness of the TVS diode in limiting the voltage across the protected circuit. Proper PCB layout is crucial for optimal performance, minimizing inductance in the loop and ensuring a low impedance path to ground. The diode should be placed as close as possible to the input terminals of the protected circuit.
