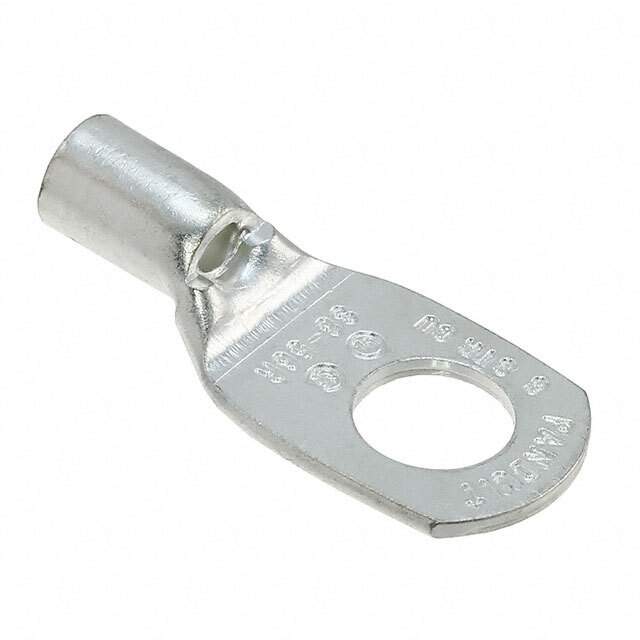

Same model may have multiple batches, images only for reference.

S8-56R-Q

Get a Quote

Part No	S8-56R-Q
Manufacturer	Panduit Corp
Catalog	Terminals
Datasheet	S8-56R-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	Panduit Corp
Series	Pan-Term®
Package	Bulk
Product Status	Obsolete
Terminal Type	Flat Sided
Stud/Tab Size	5/16 Stud
Thickness	0.050" (1.27mm)
Width - Outer Edges	0.600" (15.24mm)
Length - Overall	1.300" (33.02mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Funnel Opening
Wire Gauge	8 AWG
Insulation	Non-Insulated
Contact Material	Copper
Contact Finish	Tin
Base Product Number	S8-56
Other Names	298-11895,S8-56R-Q
Standard Package	25
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1285156-S8-56R-Q
Ultra Librarian 3D Model	Ultra Librarian S8-56R-Q CAD Model

Description

The 1285156-S8-56R-Q is a flat-sided terminal connector manufactured by Panduit Corp.

Insulation: Non-Insulated
Thickness: 0.050 inches
Width: 0.600 inches
Stud Size: 5/16 stud
Mounting: Free-Hanging (In-Line)
Series: Pan-Term series
Termination: Crimped, funnel opening
Packaging: Bulk
Standard Package: 25
