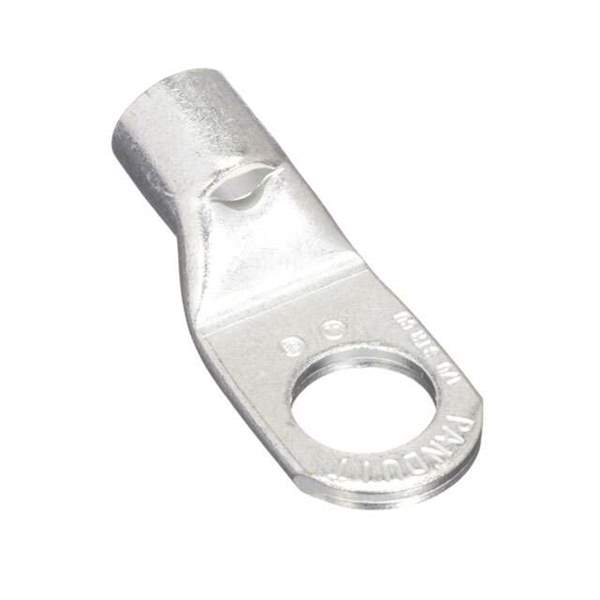

S2-56R-X

Name: S2-56R-X
Brand: Panduit Corp
SKU: 1285153
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S2-56R-X
Manufacturer	Panduit Corp
Catalog	Terminals
Datasheet	S2-56R-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	Panduit Corp
Series	Pan-Term®
Package	Bulk
Product Status	Obsolete
Terminal Type	Flat Sided
Stud/Tab Size	5/16 Stud
Thickness	0.110" (2.79mm)
Width - Outer Edges	0.700" (17.78mm)
Length - Overall	1.700" (43.18mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Funnel Opening
Wire Gauge	1-2 AWG
Insulation	Non-Insulated
Contact Material	Copper
Contact Finish	Tin
Base Product Number	S2-56
Other Names	S2-56R-X,298-15778
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1285153-S2-56R-X
Ultra Librarian 3D Model	Ultra Librarian S2-56R-X CAD Model

Alternative Products

Description

The Panduit Corp S2-56R-X is a flat-sided ring connector terminal widely used in various electronic devices such as power supplies, audio and video equipment, and other applications.

Termination: Crimp Funnel Opening
Stud/Tab Size: 5/16 Stud
Insulation: Non-Insulated
Thickness: 0.110" (2.79mm)
Width: 0.700" (17.78mm)
Length: 1.700" (43.18mm)
