Same model may have multiple batches, images only for reference.

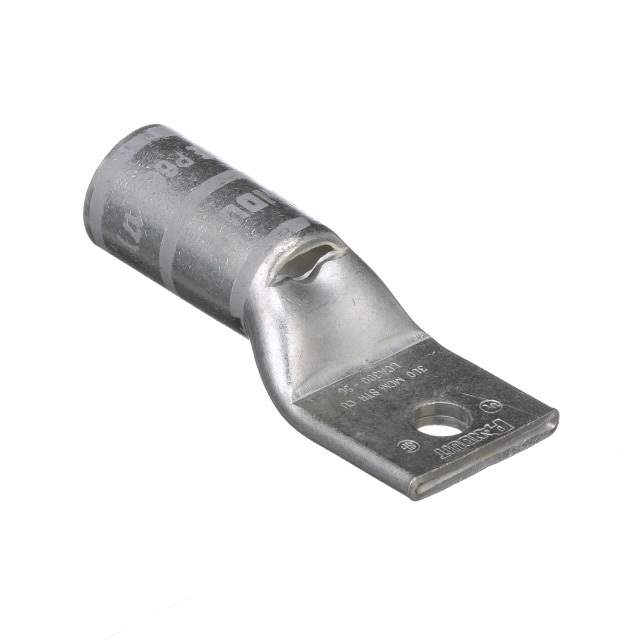

LCA300-56-X Real Image
Same model may have multiple batches, images only for reference.

LCA300-56-X

Part No LCA300-56-X
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT TONG 300MCM #5/16
Datasheet
LCA300-56-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Packaging Bulk
Status Active
Terminal Type Rectangular Tongue
Stud/Tab Size 5/16 Stud
Terminal Style Single Stud Hole
Tab Thickness 0.160" (4.06mm)
Length - Overall 2.930" (74.42mm)
Width - Outer Edges 1.190" (30.23mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 300 MCM (kcmil)
Insulation Non-Insulated
Color White
Contact Finish Electro-Tin
Diameter - Barrel ID 0.650" (16.51mm)
Diameter - Barrel OD 0.810" (20.57mm)
Diameter - Ring ID 0.340" (8.64mm)
Win Source Part Number 144675-LCA300-56-X
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LCA300-56-X CAD Model

Description

The Panduit Corp 144675-LCA300-56-X is an active connector that is designed for use in various electronic devices.

  • Manufacturer: Panduit Corp
  • Wire Gauge: 300 MCM (kcmil)
  • Terminal Type: Rectangular Tongue
  • Insulation: Non-Insulated
  • Terminal Style: Single Stud Hole
