Same model may have multiple batches, images only for reference.

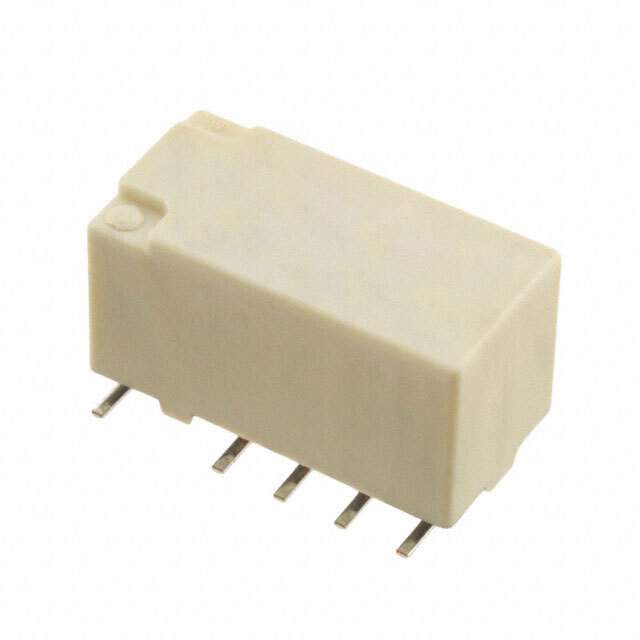

TX2SA-L-5V-TH Real Image
Same model may have multiple batches, images only for reference.

TX2SA-L-5V-TH

Part No TX2SA-L-5V-TH
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPDT 2A 5V
Datasheet
TX2SA-L-5V-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series TX-TH
Packaging Tube
Relay Type General
Coil Type Latching, Single Coil
Coil Current 20mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Maximum) 3.75 VDC
Operate Time 4ms
Release Time 4ms
Features 7.5A Inrush, Sealed-Fully
Mounting SMD
Termination Style Gull Wing
Contact Material Silver (Ag), Gold (Au)
Coil Power 100 mW
Coil Resistance 250 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 798579-TX2SA-L-5V-TH
Popularity Medium
Supply and Demand Status Limited
Family Name TX2SA-L-5V-TH
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TX2SA-L-5V-TH CAD Model

Description

The Panasonic Electric Works 798579-TX2SA-L-5V-TH is a latching relay that has a coil voltage of 5VDC and a coil resistance of 250 Ohms.

  • Coil Voltage: 5VDC
  • Coil Resistance: 250 Ohms
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2A
  • Features: Sealed-Fully, 7.5A Inrush
  • Mounting: SMT
  • Type: General Relay
  • Supply and Demand Status: Limited
