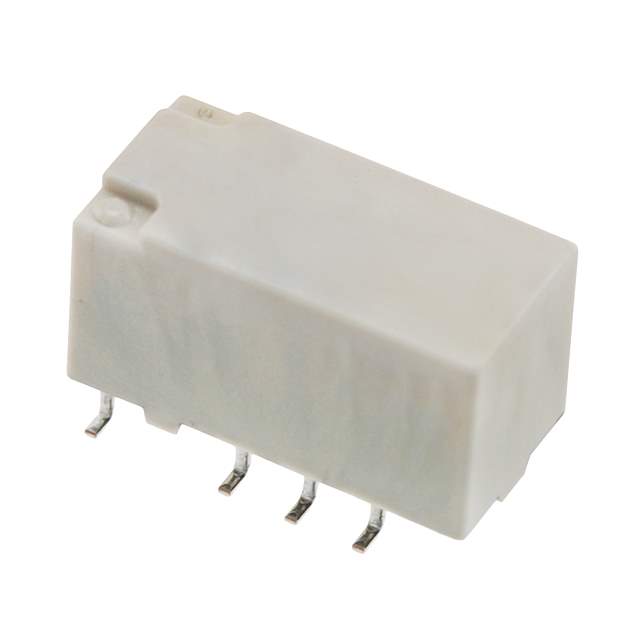

TX2SA-5V-Z

Part No TX2SA-5V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 5V
Datasheet
TX2SA-5V-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 28.1mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 178 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 048380-TX2SA-5V-Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TX2SA-5V-Z CAD Model

Description

The TX2SA-5V-Z is a medium-popularity electronic component manufactured by Panasonic Electric Works. This DPDT (2 Form C) telecom relay has a coil resistance of 178 Ohms, a coil current of 28.1mA, and an operate time of 4ms.

  • Popularity: Medium
  • Coil Resistance: 178 Ohms
  • Coil Current: 28.1mA
  • Operate Time: 4ms
  • Mounting: SMD
  • Switching Voltage: 220VDC - Max
