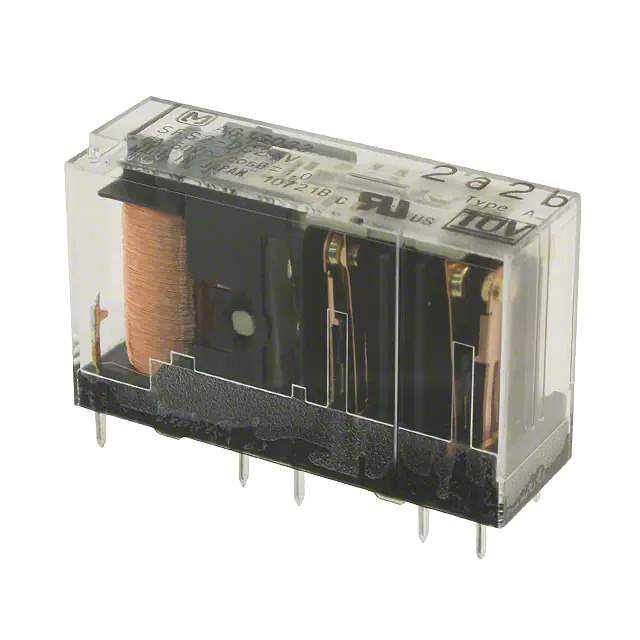

SFS4-DC24V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Safety Relays
Mfr Panasonic
Series SFS
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 30VDC - Max
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 20.8 mA
Coil Power 500mW
Coil Resistance 1.15 kOhms
Base Product Number SFS4-D
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 933317-SFS4-DC24V
Ultra Librarian 3D Model Ultra Librarian SFS4-DC24V CAD Model

Description

The 933317-SFS4-DC24V is a safety relay with a 6PST-4NO/2NC contact configuration.

  • Coil Resistance: 1.15 kOhms
  • Coil Current: 20.8 mA
  • Coil Voltage: 24VDC
  • Contact Rating: 6A
  • Designed for: Safety Applications
  • Contact Material: Silver Tin Oxide
  • Features: Sealed and Fully Protected
  • Manufacturer: Panasonic
  • Package: Bulk
  • Package Quantity: 50 pcs
  • Operating Temperature Range: -40°C to 85°C
  • Compliant with: ECCN regulations
