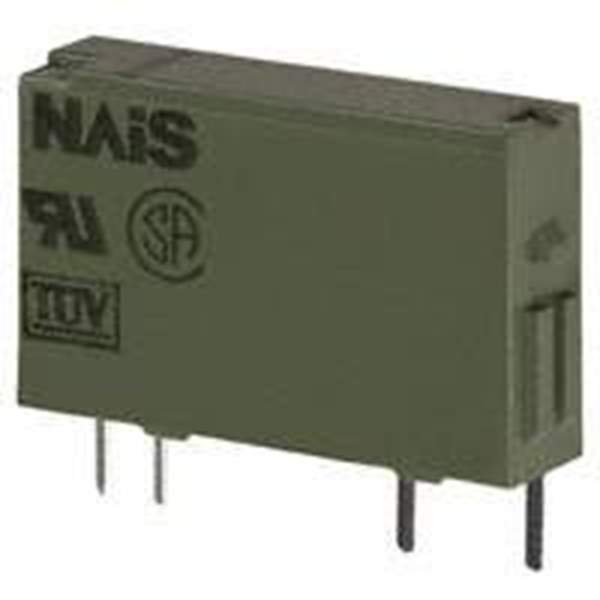

PA1A-12V Real Image
Same model may have multiple batches, images only for reference.

PA1A-12V

Part No PA1A-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V
Datasheet
PA1A-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 120 mW
Coil Resistance 1.2 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 045543-PA1A-12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PA1A-12V CAD Model

Description

The Panasonic Electric Works PA1A-12V is an obsolete (EOL) electronic component that is perfect for electronic devices that require a general-purpose relay.

  • Manufacturer: Panasonic Electric Works
  • Win Source Part Number: 045543
  • Mounting Type: Through-Hole
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 110VDC
