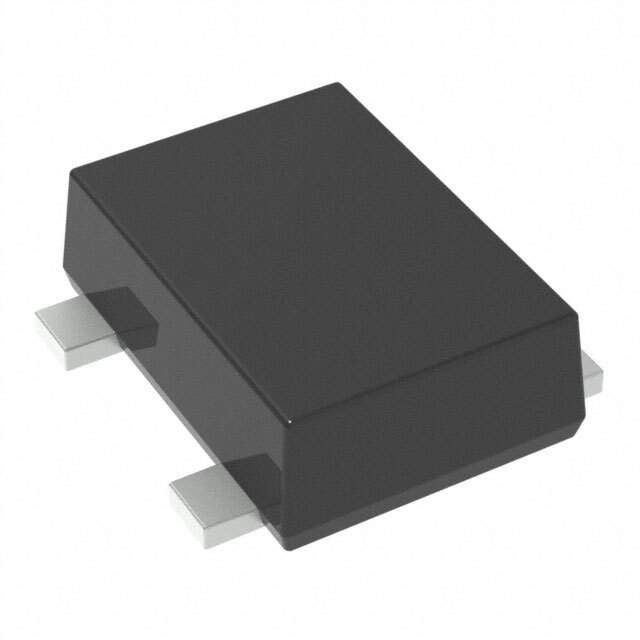

MA4S159-(TX) Real Image
Same model may have multiple batches, images only for reference.

MA4S159-(TX)

Part No MA4S159-(TX)
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 80V 100MA SMINI4
Datasheet
MA4S159-(TX) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 100nA @ 75V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SMini4-F1
Win Source Part Number 073143-MA4S159-(TX)
Ultra Librarian 3D Model Ultra Librarian MA4S159-(TX) CAD Model

Description

The MA4S159-(TX) diode manufactured by Panasonic Electronic Components is a standard diode with a maximum reverse voltage of 80V and a forward voltage of 1.2V at 100mA.

  • Maximum Reverse Voltage: 80V
  • Forward Voltage: 1.2V @ 100mA
  • Reverse Recovery Time: 3ns
  • Reverse Leakage Current: 100nA @ 75V
  • Packaging: Surface mount package
