MA2J1110GL Panasonic

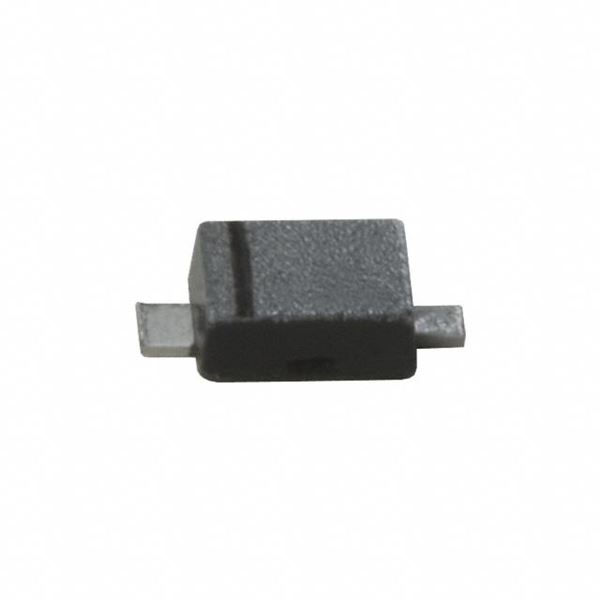

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 100nA @ 75V
Capacitance @ Vr, F 1.2pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F3
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 096183-MA2J1110GL
Ultra Librarian 3D Model Ultra Librarian MA2J1110GL CAD Model

Description

The Panasonic Electronic Components diode with Win Source Part Number 096183-MA2J1110GL is a standard type diode. Key specifications include:

  • Voltage Rating: 80V
  • Average Rectified Current (DC): 100mA
  • Forward Voltage (Vf) at 100mA: 1.2V
  • Reverse Recovery Time (trr): 3ns
  • Reverse Leakage Current: 100nA @ 75V
  • Capacitance (at Vr, F): 1.2pF @ 0V, 1MHz
  • Mounting Type: SMD (SMT)
  • Package: SMini2-F3
  • Temperature Range: -55°C to 150°C
  • Status: Obsolete (EOL)
