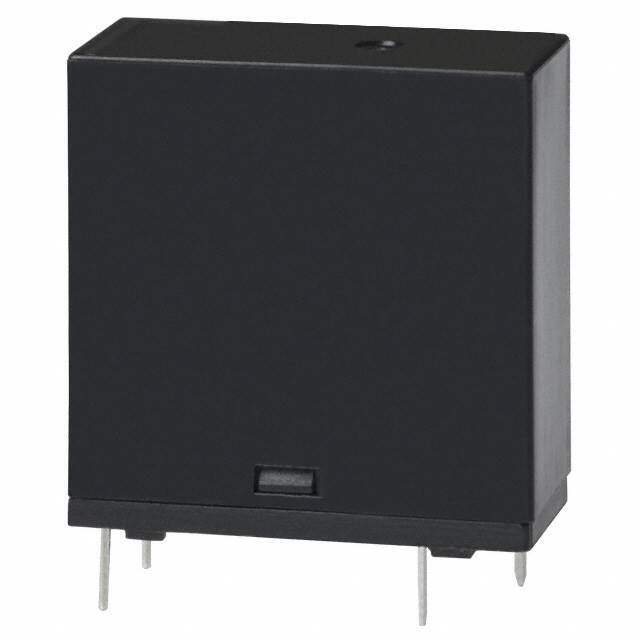

LKS1AF-12V Real Image
Same model may have multiple batches, images only for reference.

LKS1AF-12V

Part No LKS1AF-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V
Datasheet
LKS1AF-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 20.8mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 576 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 206268-LKS1AF-12V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LKS1AF-12V CAD Model

Description

The Panasonic Electric Works 206268-LKS1AF-12V is a general-purpose relay with a coil voltage of 12VDC.

  • Coil Voltage: 12VDC
  • Contact Rating: 5A
  • Switching Voltage: 277VAC
  • Sealed: flux protection
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: through a hole
  • Coil Resistance: 576 Ohms
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Status: obsolete (EOL)
  • Operating Temperature Range: -40°C to 70°C
