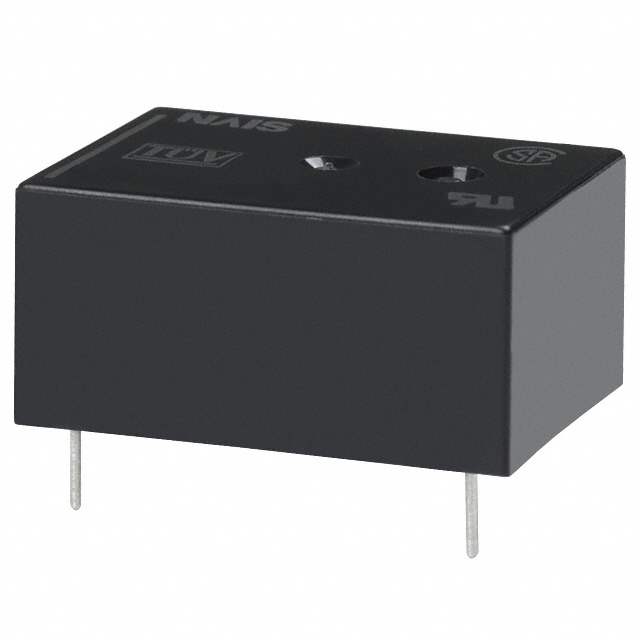

JV1APF-48V Real Image
Same model may have multiple batches, images only for reference.

JV1APF-48V

Part No JV1APF-48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 48V
Datasheet
JV1APF-48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 4.2mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 125VAC - Max
Turn On Voltage (Max) 38.4 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 4ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 11.52 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 205779-JV1APF-48V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JV1APF-48V CAD Model

Description

The Panasonic Electric Works JV1APF-48V is a general-purpose relay with a SPST-NO (1 Form A) contact form.

  • Coil Voltage: 48VDC
  • Coil Resistance: 11.52 kOhms
  • Mounting: Through hole
  • Packaging: Bulk
  • Contact Rating: 16A
  • Switching Voltage: 125VAC - Max
  • Status: Obsolete (EOL)
