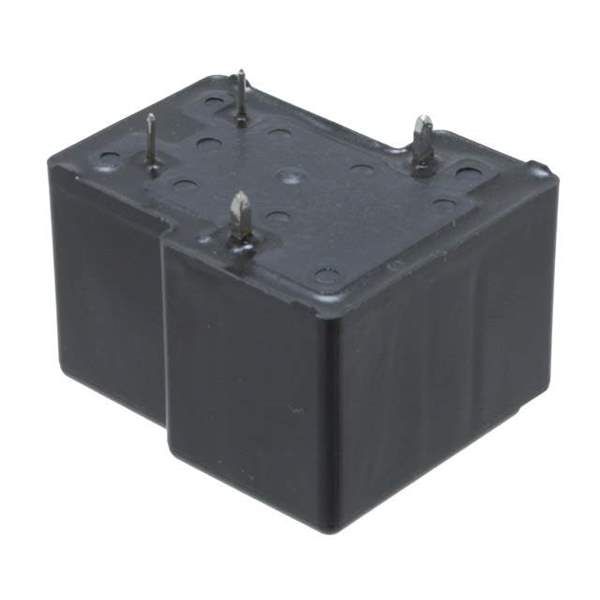

JTN1AG-PA-F-DC24V Real Image
Same model may have multiple batches, images only for reference.

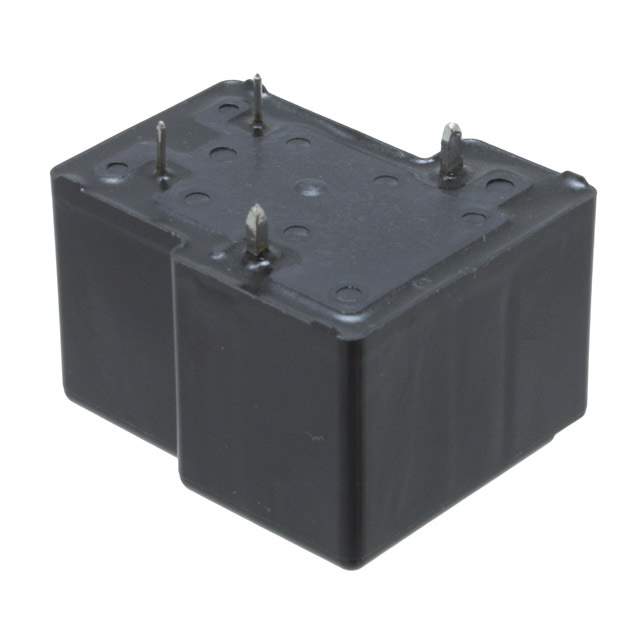

JTN1AG-PA-F-DC24V

Part No JTN1AG-PA-F-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number JTN1AG
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names JTN1AG-PA-F-DC24V-NDR,JTN1AGPAFDC24V
Standard Package 50
Win Source Part Number 1024152-JTN1AG-PA-F-DC24V
Ultra Librarian 3D Model Ultra Librarian JTN1AG-PA-F-DC24V CAD Model

Description

The JTN1AG-PA-F-DC24V is a general-purpose power relay from Panasonic Electric Works. Bold the product name, JTN1AG-PA-F-DC24V and manufacturer, Panasonic Electric Works

  • Coil Voltage: 24VDC
  • Coil Resistance: 720 Ohms
  • Contact Rating: 30 A
  • Switching Voltage: 277VAC - Max
  • Contact Form: SPST-NO
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Standard Package: 50
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Operating Temperature: -55°C to 85°C
  • ECCN: EAR99
