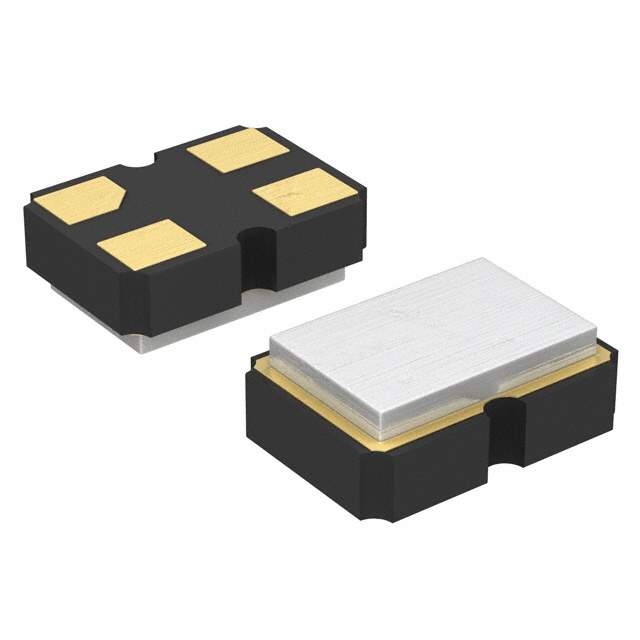

ASD3-40.000MHZ-EC-T Real Image
Same model may have multiple batches, images only for reference.

ASD3-40.000MHZ-EC-T

Part No ASD3-40.000MHZ-EC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC XO 40.000MHZ CMOS SMD
Datasheet
ASD3-40.000MHZ-EC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Packaging Cut Reel
Type XO (Standard)
Frequency 40MHz
Purpose Enable/Disable
Output HCMOS
Supply Voltage - Operating 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 6mA
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20μA
Win Source Part Number 1094995-ASD3-40.000MHZ-EC-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ASD3-40.000MHZ-EC-T CAD Model

Description

The Abracon LLC ASD3-40.000MHZ-EC-T is a surface mount XO (Standard) oscillator with a frequency of 40MHz and an output of HCMOS.

  • Frequency Stability: ±50ppm
  • Current Supply: 6mA
  • Temperature Range: -20°C to 70°C
  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm)
