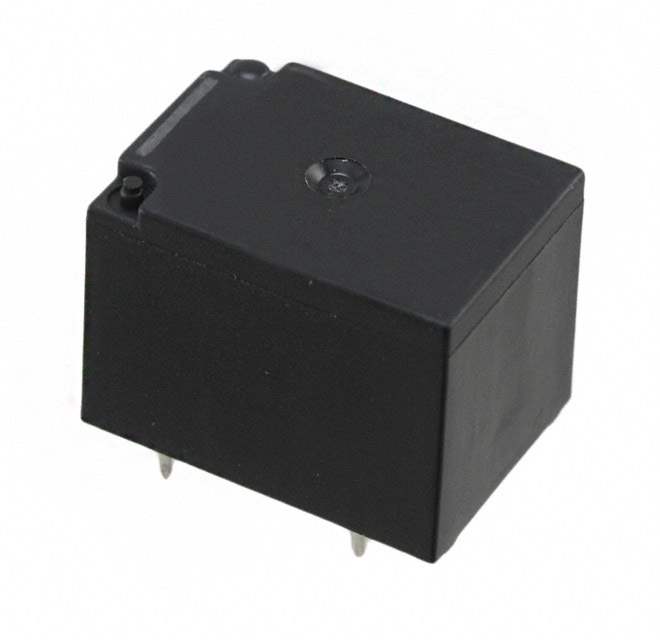

JS1-6V-F Real Image
Same model may have multiple batches, images only for reference.

JS1-6V-F

Part No JS1-6V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 6V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 60mA
Coil Voltage 6VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Turn On Voltage (Max) 4.2 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 100 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 135127-JS1-6V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JS1-6V-F CAD Model

Description

The JS1-6V-F is a Panasonic Electric Works electronic component that is packaged in bulk.

  • Termination Style: PC Pin
  • Construction: Fully Sealed
  • Contact Form: SPDT (1 Form C)
  • Mounting: Through Hole
  • Coil Resistance: 100 Ohms
  • Coil Current: 60mA
  • Operate Time: 10ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 6VDC
  • Contact Rating (current): 10A
  • Switching Voltage: 250VAC and 100VDC - Max
  • Turn On Voltage (max): 4.2 VDC
  • Turn Off Voltage (min): 0.6 VDC
  • Release Time: 10ms
  • Coil Power: 360 mW
  • Category: Relays
  • Popularity: Medium
  • Quantity per Package: 100
