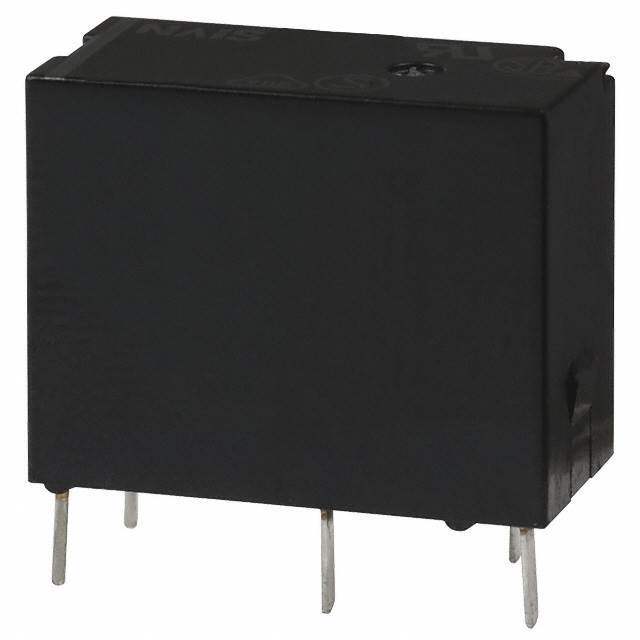

JK1AF-12V Real Image
Same model may have multiple batches, images only for reference.

JK1AF-12V

Part No JK1AF-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 12V
Datasheet
JK1AF-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 17mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 4ms
Release Time 2ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 205741-JK1AF-12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JK1AF-12V CAD Model

Description

The Panasonic Electric Works JK1AF-12V is a general-purpose relay with a sealed-flux protection feature.

  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Coil Resistance: 720 Ohms
  • Coil Current: 17mA
  • Operate Time: 4ms
  • Release Time: 2ms
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Coil Power: 200 mW
  • Contact Rating (Current): 3A
  • Switching Voltage: 250VAC, 110VDC - Max
  • Turn-On Voltage (Max): 9.6 VDC
  • Turn-Off Voltage (Min): 0.6 VDC
  • Category: Relays
  • Lifecycle Status: Obsolete (EOL)
  • Operating Temperature: -40°C to 70°C
  • Supply and Demand Status: Limited
