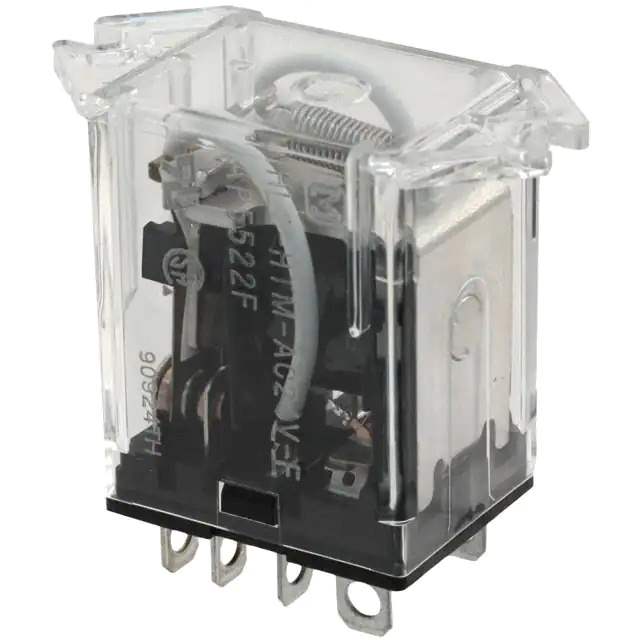

HL1-HTM-DC24V Real Image
Same model may have multiple batches, images only for reference.

HL1-HTM-DC24V

Part No HL1-HTM-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HL
Package Bulk
Product Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 125VAC - Nom
Coil Current 37 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number HL1-HTM
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 920270-HL1-HTM-DC24V
Ultra Librarian 3D Model Ultra Librarian HL1-HTM-DC24V CAD Model

Description

The HL series from Panasonic is a power relay with a coil voltage of 24VDC.

  • Contact Form: SPDT
  • Contact Rating: 15A
  • Operating Temperature: -50°C to 70°C
  • Termination Style: Quick Connect
  • Application: General-Purpose
  • Release Time: 5ms
  • Operate Time: 10ms
