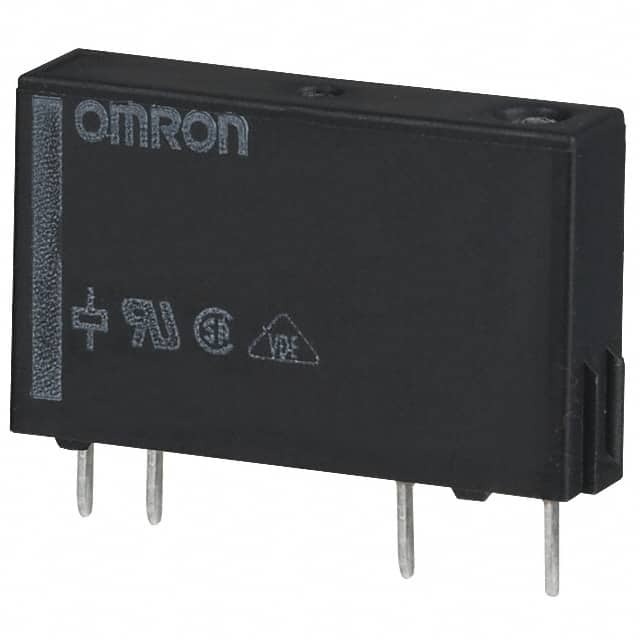

G6DS-1A-H DC12
Same model may have multiple batches, images only for reference.

G6DS-1A-H DC12

Part No G6DS-1A-H DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
G6DS-1A-H DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G6DS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Relay Type General Purpose
Coil Resistance 1.2 kOhms
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 872549-G6DS-1A-H DC12
Ultra Librarian 3D Model Ultra Librarian G6DS-1A-H DC12 CAD Model

Description

The Omron G6DS-1A-H DC12 is a power relay from the G6DS series. It is designed for applications that require high current switching.

  • Contact Rating: 5A
  • Contact Load: AC and DC
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 12VDC
  • Design: Sealed, fully protected
  • Mounting: Through-hole
  • Status: Obsolete
