Same model may have multiple batches, images only for reference.

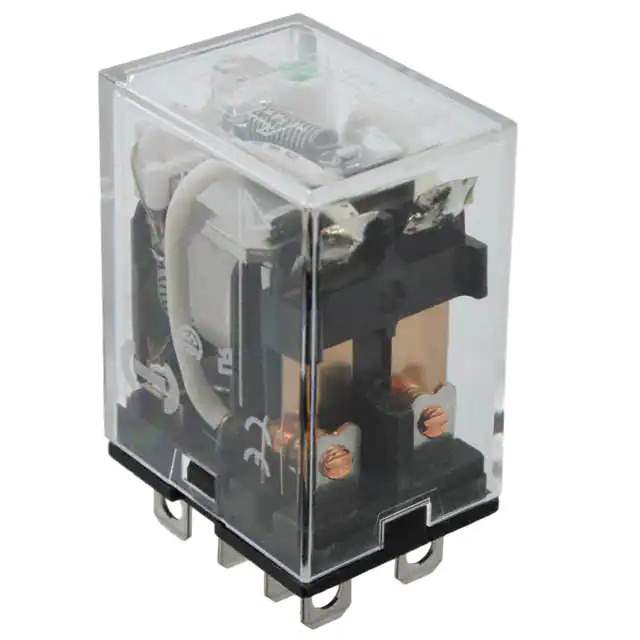

LY2N-D2-DC24 Real Image
Same model may have multiple batches, images only for reference.

LY2N-D2-DC24

Part No LY2N-D2-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Datasheet
LY2N-D2-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series LY
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 36.9 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -25°C ~ 55°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number LY2
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 924686-LY2N-D2-DC24
Ultra Librarian 3D Model Ultra Librarian LY2N-D2-DC24 CAD Model

Description

The LY2N-D2-DC24 is a power relay from Omron's LY series.

  • Relay Type: Power Relay
  • Series: LY
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 10A
  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Lighted Indicator: Yes
  • Termination Style: Plug-In
  • Socketable: Yes
  • Application: General Purpose
  • Switching Voltage: 250VAC and 125VDC
  • Operating Temperature: -25°C to 55°C
